Features

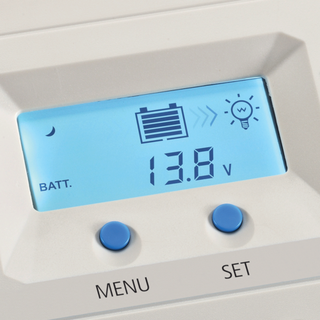

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more

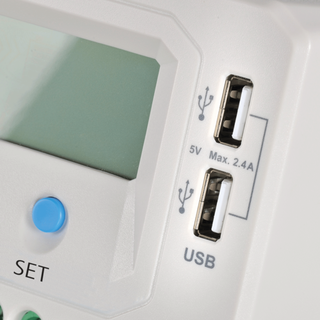

Dual USB ports
5V 2.4A USB ports for powering direct from controller
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge

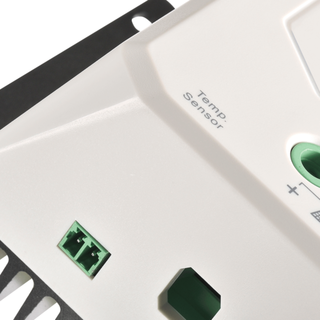

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection.
Specifications
INPUT: 12V or 24V
MAX INPUT: 50VDC, 60A
MAX CHARGE: 60A
MAXIMUM PANEL SIZE: 720W 12V (360W 24V)
BATTERY: 12V or 24V
CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.7v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v
CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.4v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v
L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V
L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V
APPPROVALS: EMC
IP RATING: IP22
