Voltage 12
CCA 440
MCA 513
PHCA 705
Capacity 34Ah
Weight 10.2kg
Dimensions L: 166mm W: 126mm H: 175mm
Height with Bottom spacer: 192mm
AVAILABLE IN BLACK
Information
AVAILABLE TO PURCHASE IN A BLACK CASE -IF YOU WANT THE BATTERY BLACK -PUT THIS IN THE NOTES WITH YOUR ONLINE SALE.
Features

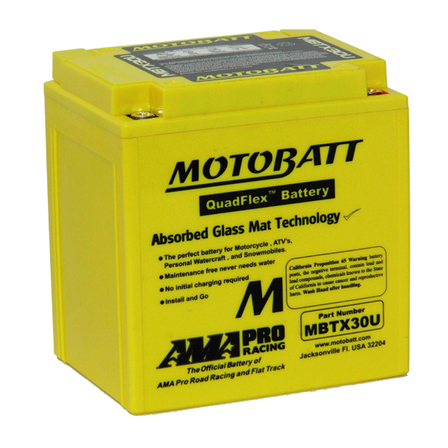

QUADFLEX AGM BATTERY
The perfect battery for motorcycle, ATV's, Personal Watercraft and Snow Mobiles.
Used in Generators, Lawnmowers, Racing and other cycling/starting applications
Maintenance Free, AGM-DRY CELL technology.
More power and more Ah than nearly All other brands in this range.
CCA, CA, MCA, HCA + PHCA cranking ability.
Specifications
| Battery Type | MBTX30U | |
|---|---|---|
| Voltage | 12 | |
| CCA @-18C | 440A | |
| MCA | 513A | |
| PHCA | 705A | |
| Capacity (10HR) | 34Ah, C20 36Ah | |
| Weight | 10.2kg / 22.95Ibs | |
| Dimensions (in / mm) | L: 6.54(166) W: 4.96(126) H: 6.89(175) TH: 7.56(192) |
|

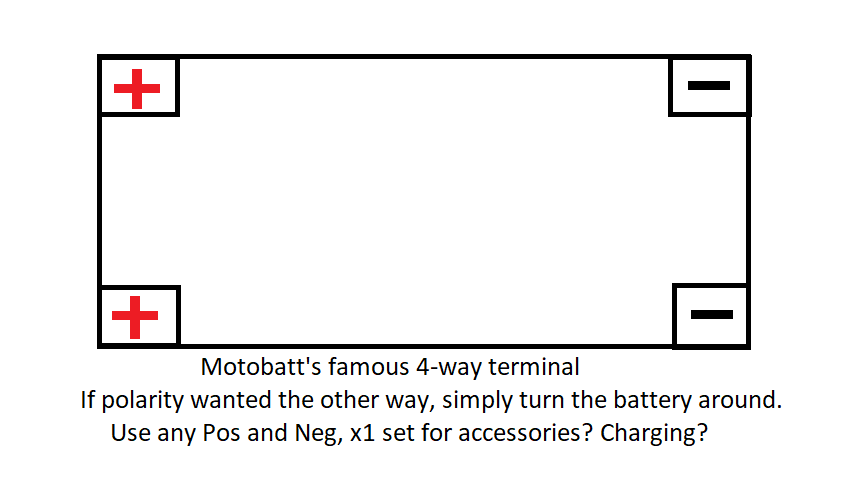

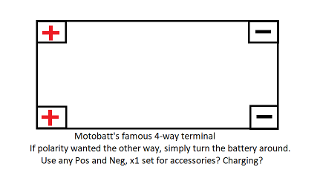

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2 Black, 2 Red | |
| Screws | 2x Screws M6x12 | |
| Terminal Caps | 2 Black, 2 Red PART | |
| Spacer | 17mm Bottom, 2 Square Top Corners |
|
Applications
COMPATIBLE PART NUMBERS: Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A, YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW, YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030, MBTX30U, MBTX30UHD, YG30LBS, YG53030, YG53034, ETX30L, ETX30LA, ETX30 + MANY OTHERS
