Voltage 12V
CCA 200
MCA 275
PHCA 451
Capacity 14Ah
Weight 4.40kg
Dimensions L: 151mm W: 87mm H: 130mm
H with 1 spacer: 135mm H with 2 spacers: 145mm
Information
Features

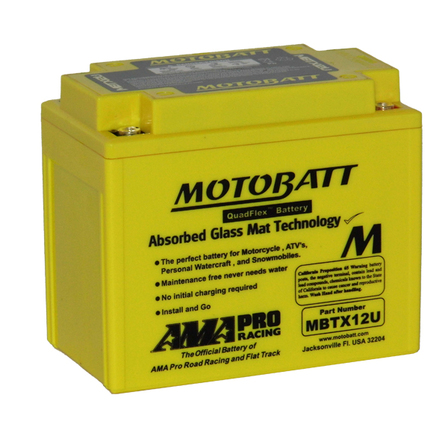

QUADFLEX AGM BATTERY
The perfect battery for motorcycle, ATV's, Personal Watercraft and Snow Mobiles.
Used in Generators, Lawnmowers, Racing and other cycling/starting applications
Maintenance Free, AGM-DRY CELL technology.
More power and more Ah than nearly All other brands in this range.
CCA, CA, MCA, HCA + PHCA cranking ability.
Specifications
| Battery Type | MBTX12U | |
|---|---|---|
| Voltage | 12V | |
| CCA | 200 | |
| MCA | 275A | |
| PHCA | 451A | |
| Capacity (10HR) | 14Ah | |
| Weight | 4.40kg /9.7Ibs | |
| Dimensions (in / mm) | L: 5.94(151) W: 3.43(87) H: 5.12(130) TH1: 5.31(135) TH2: 5.71(145) |
|

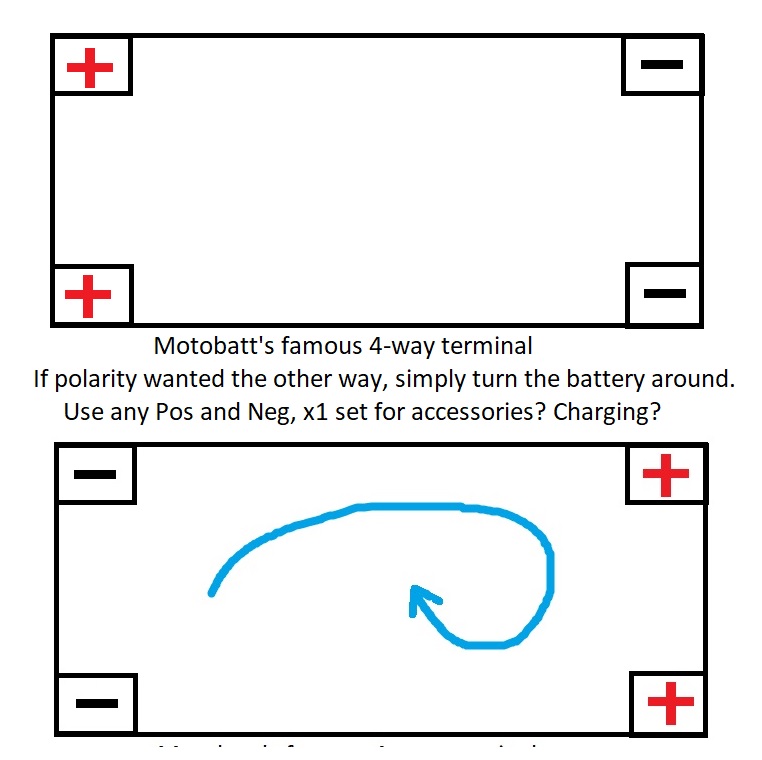

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2x Blocknut M6 | |
| Screws | 2x Screws M6x12 | |
| Spacer | 2, Bottom Spacers. Spacer 1 = 5mm, Spacer 2 =1 0mm Total = 15mm |
|
Applications
COMPATIBLE PART NUMBERS: YB12BB2, YTX12BS, YTX12, YTX14BS, YTX14, YTX14L, YTX14H, YTX14HBS, YTX14LBS, KMX14BS, YTX15, YTX15L, YTX15LBS, ETX12, PC545, MBTX12U, CTX12BS, YG12BS, YG14BS, YG14LBS, YG15BS, YG15LBS + OTHERS
