Automatic 12/24V 30A 4 Stage Solar Charge Premium Controller with Remote Control (FREE DELIVERY)


Automatic 12/24V 30A 4 Stage Solar Charge Premium Controller with Remote Control (FREE DELIVERY)

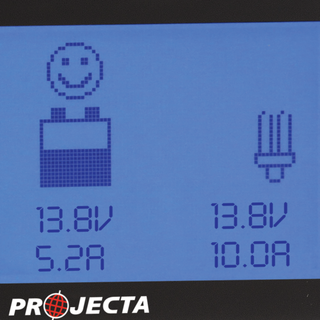

The ideal controller to suit the demands of larger power requirements often found in motor homes, house boats or remote shacks. The sophisticated remote control provides complete control, allowing the user to set a tailored charging profile and monitor battery and charging status.
Click on image for more details.

MANUAL IN PDF FOR DOWNLOAD HERE

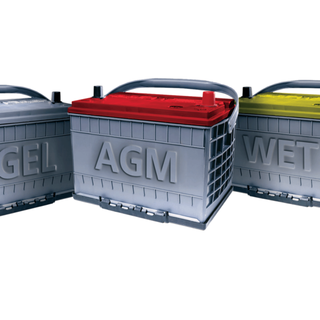

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings

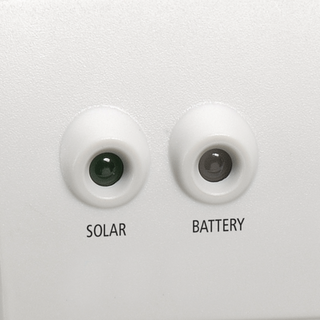

L.E.D status indicators
Displays quick reference to charge and battery status

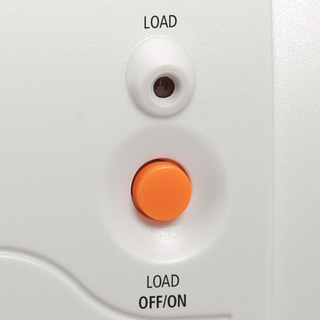

Manual load control
Allows user to switch the DC load on/off from the controller itself

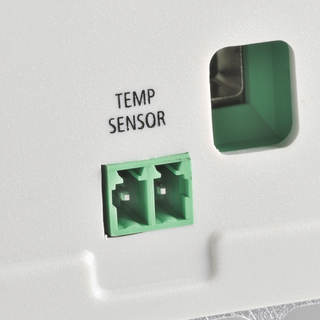

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge

INPUT: 12V or 24V
MAX INPUT: 50VDC, 30A
MAX CHARGE: 30A
MAXIMUM PANEL SIZE: 360W 12V (180W 24V)
BATTERY: 12V or 24V

CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.6v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v

CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.2v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v

L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V

L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V

STAND-BY CURRENT: 23.4mA

APPPROVALS: EMC

Price:
NZ$ 337.00 including GST
TBC-SC330
