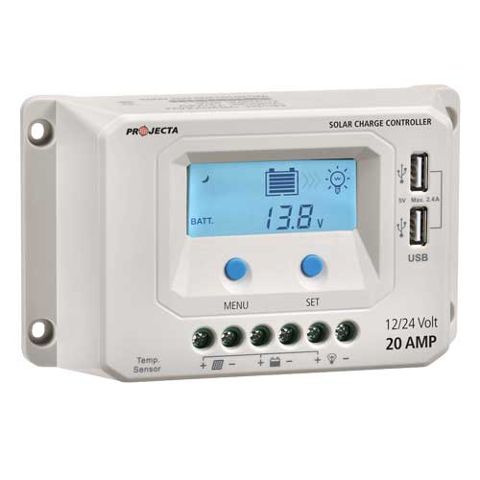

Automatic 12/24V 20A 4 Stage Solar Charge Smart Controller

12/24V 20A 4 Stage Solar Controller. PREMIUM GRADE. Ideally suited to solar panels producing up to 20 Amps, this controller is a sophisticated solar controller that delivers a comprehensive 4 stage charging process and the ability to tailor its settings to best suit your battery type.
Click on image for more details.

Price:

NZ$ 249.00 including GST

or four payments of $62.25 with
Learn More

Product Code:

TBC-SC220

Stock Status

In Stock

Features
Specifications
Product Enquiry
Associated Items

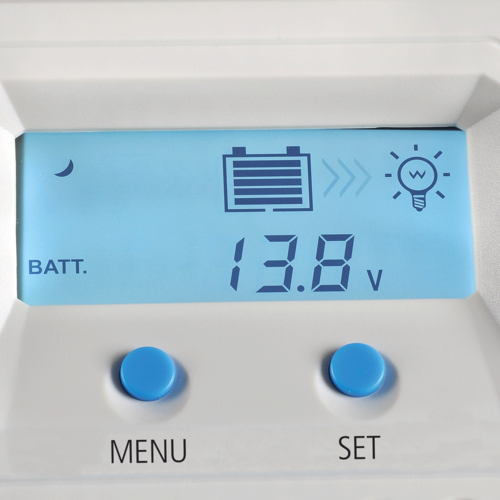

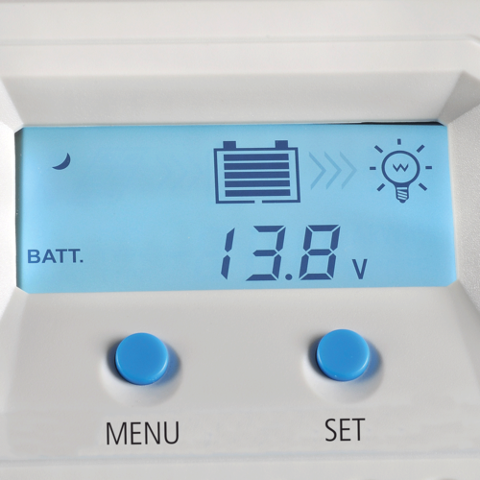

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more.

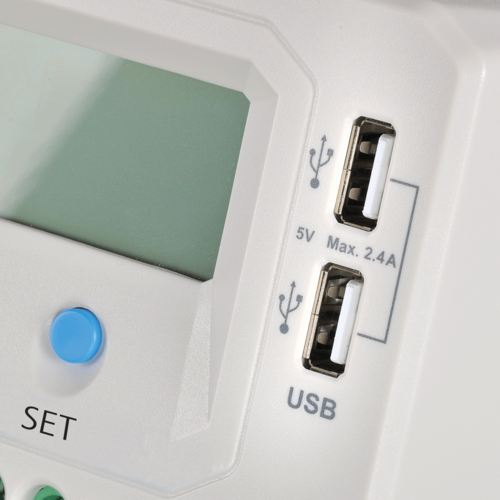

Dual USB ports
5V 2.4A USB ports for powering direct from controller.

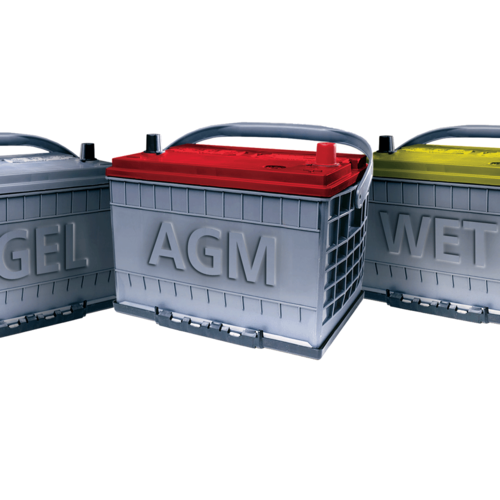

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings.
Low voltage disconnect
Enables you to protect your battery from over discharge.

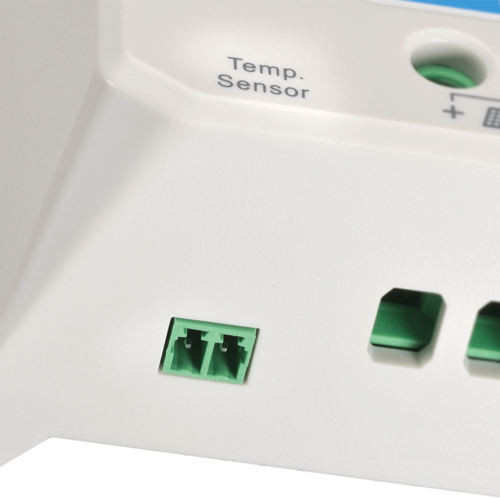

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection.

INPUT: 12V or 24V
MAX INPUT: 50VDC, 20A
MAX CHARGE: 20A
MAXIMUM PANEL SIZE: 240W 12V (120W 24V)
BATTERY: 12V or 24V

CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.7v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v

CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.4v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v

L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V

L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V
