Automatic 12/24V 20A 4 Stage Solar Charge Premium Controller with Remote Control

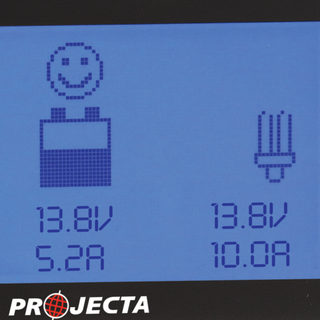

12/24V 20A Solar Controller. PREMIUM GRADE. The ideal controller to suit panels producing up to 20A, often found in caravans. The sophisticated remote control provides total user control and advanced operation and allows the user to set a tailored charging profile and monitor battery and charging status.
Click on image for more details.

Price:

NZ$ 369.00 including GST

or four payments of $92.25 with
Learn More

Product Code:

TBC-SC320D

Stock Status

In Stock

Features
Specifications
Product Enquiry
Associated Items

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings

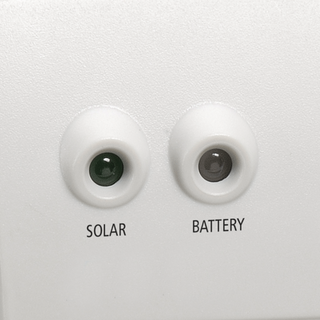

L.E.D status indicators
Displays quick reference to charge and battery status

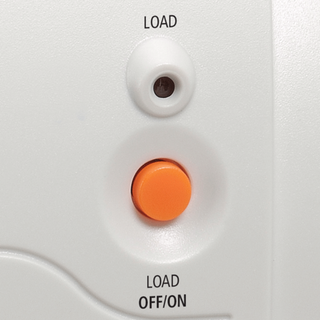

Manual load control
Allows user to switch the DC load on/off from the controller itself
Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge

INPUT: 12V or 24V
MAX INPUT: 50VDC, 20A
MAX CHARGE: 20A
MAXIMUM PANEL SIZE: 240W 12V (120W 24V)
BATTERY: 12V or 24V

CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.6v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v

CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.2v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v

L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V

L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V

STAND-BY CURRENT: 23.4mA

APPPROVALS: EMC
