Automatic 12/24V 45A 4 Stage Solar Charge Smart Controller

12/24V 45A 4 Stage Solar Controller. PREMIUM GRADE. Ideal for larger deep cycle battery banks often found in motor homes, houseboats and remote shacks. This sophisticated controller boasts a host of intelligent features enabling the user to customise the charge settings to maximise battery life and performance.
Click on image for more details.

Price:

NZ$ 299.00 including GST

or four payments of $74.75 with
Learn More

Product Code:

TBC-SC245

Stock Status

In Stock

Features
Specifications
Product Enquiry
Associated Items

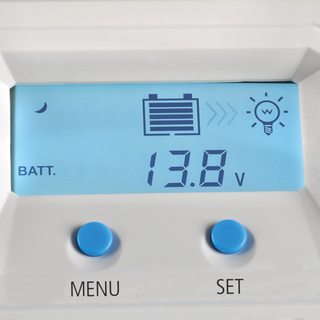

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more

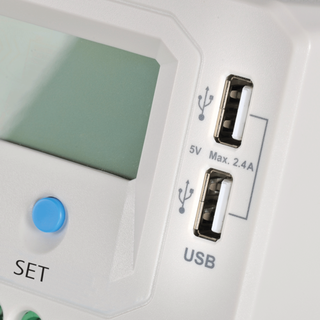

Dual USB ports
5V 2.4A USB ports for powering direct from controller
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge

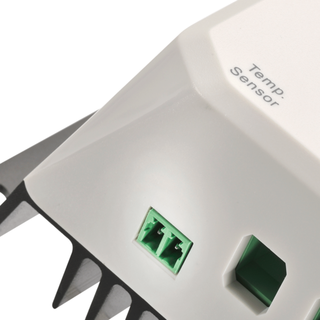

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

INPUT: 12V or 24V
MAX INPUT: 50VDC, 45A
MAX CHARGE: 45A
MAXIMUM PANEL SIZE: 540W 12V (270W 24V)
BATTERY: 12V or 24V

CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.7v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v

CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.4v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v

L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V

L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V

APPPROVALS: EMC
IP RATING: IP22
