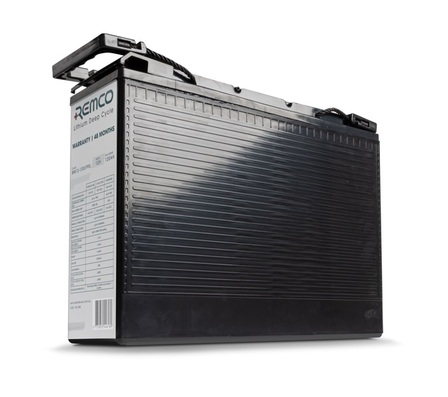

Weighs 13.5KG with dimensions of 395 x 110 x 265mm and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple
Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
YOU CAN ONLY COLLECT THIS ITEM FROM THE OTHER LOCATIONS if you order it separately from other product.
or four payments of $400.00
with
Learn More
Information
Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.
Features
FEATURES
Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.
Light Weight vs traditional batteries
3000+ recharge cycles up to 5 times more compared to AGM
Less maintenance and no sulfation
100% Amp hour capacity available
Faster recharge vs traditional batteries
Built-in Battery Management System (BMS)
Connect up to 48V in series or 4 batteries in parallel
FAST CHARGING and we "still" recommend Lithium Battery Chargers for Lithium Batteries
Specifications
ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 120 Ah
Capacity @ 30A 300 min
Energy 1536 Wh
Resistance ≤30 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells Cell 3.2V6Ah
CHARGE PERFORMANCE
Recommended Charge Current 30 A
Max Charge Current 60 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <14.8 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 395 x 110 x 265 mm
Approx. Weight 13.5 kg
Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP54
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 100 A
Peak Discharge Cut-Off Current 300 A (3 s)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 9.6 V (50 ~ 150 ms)
Reconnect Voltage 11 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
SPECIFICATIONS FOR DOWNLOAD in PDF [HERE]
