12v 130Ah Lithium Battery Deep Cycle LiFePO4 Recreational

12v 130Ah Lithium Battery Deep Cycle LiFePO4 Recreational

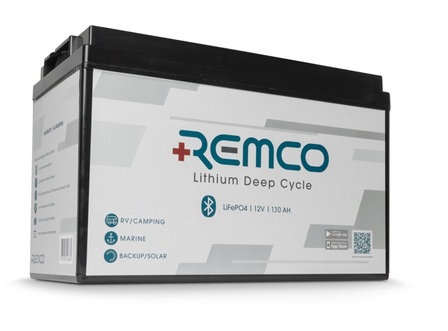

Recreational Lithium Battery 12v 130Ah
Weighs only 13KG with dimensions of 330 x 172 x 223mm (GRP31) and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple

Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
YOU CAN ONLY COLLECT THIS ITEM FROM THE OTHER LOCATIONS if you order it separately from other product.
Price:
NZ$ 1,829.00 including GST


or four payments of $457.25 with
Afterpay Payment Offer Learn More

TBCRM12130LFP-BT
In Stock
No 'Rural' or 'out of town limits' deliveries for this item.
Purchase Qty:


Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.

FEATURES
Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.

Light Weight vs traditional batteries
3000+ recharge cycles up to 5 times more compared to AGM
Less maintenance and no sulfation
100% Amp hour capacity available
Faster recharge vs traditional batteries
Built-in Battery Management System (BMS)
Connect up to 48V in series or 4 batteries in parallel

FAST CHARGING and we "still" recommend Lithium Battery Chargers for Lithium Batteries

ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 130 Ah
Capacity @ 26.4A 300 min
Energy 1689.6 Wh
Resistance ≤20 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells 32700 6Ah
CHARGE PERFORMANCE
Recommended Charge Current 20 A
Max Charge Current 50 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <14.8 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 330 x 172 x 223 mm
Approx. Weight 13 kg
Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP65
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 120 A
Peak Discharge Cut-Off Current 360 A (5 ~15 ms)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms)
Reconnect Voltage 10 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9

FULL SPECIFICATIONS FOR DOWNLOAD in PDF [HERE]
