Convert Battery Power to Mains Power.
Automatic switch AC switch over when Mains power supplied, whilst also charging your batteries in this mode.
A common device for Boaties, RV/Campers and off-grid, Grid-tie applications.
A technical device for the technically minded with add-on compatible.
This device is also suited to Lead based and Lithium Batteries.
Information
Superior performance, Friendly price.
Using the latest technology, the CombiMaster Inverter-Chargers are all about user-friendly and reliable High-Tech Equipment for the end-user.
The powerful CombiMaster range drives even the heaviest and most sensitive loads seamlessly.
Combimasters originate from the Pioneer of Lithium compatible products -Mastervolt of Holland.
The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply.
Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.
As you would expect from the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication hardware (sold separately), allowing for a broad range of monitoring and system integration options.
Remote Control and Monitoring options
MasterBus compatible via SmartRemote or EasyView 5 display.
CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
NMEA 2000 compatible via 3rd party multifunctional display.
Features
Most compact and lightweight Combi in its class.
Reliable, hum-free and longer operation from your batteries.
Starts even the heaviest and most sensitive loads.
Intelligent 3-step+ battery charger for faster and safer charging.
Automatic switching between mains and inverter mode.
Power Assist prevents blown mains fuses.
Generator compatible.
Integrated CZone, MasterBus and NMEA 2000 communication.

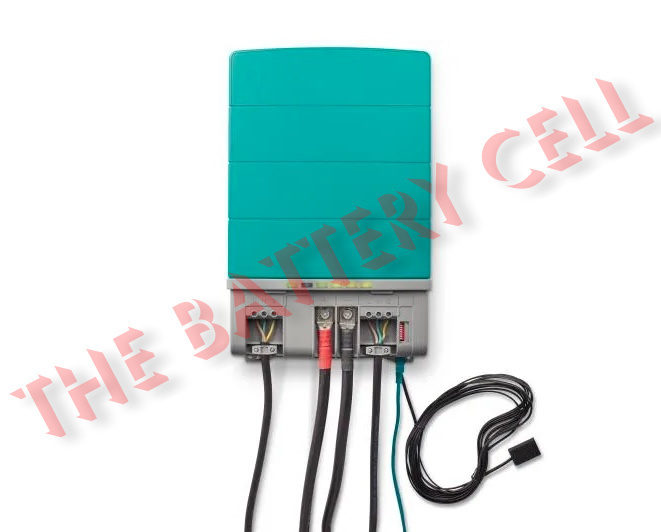

Quick installation with heavy duty connections.
E-mark certified (230 V models only!)

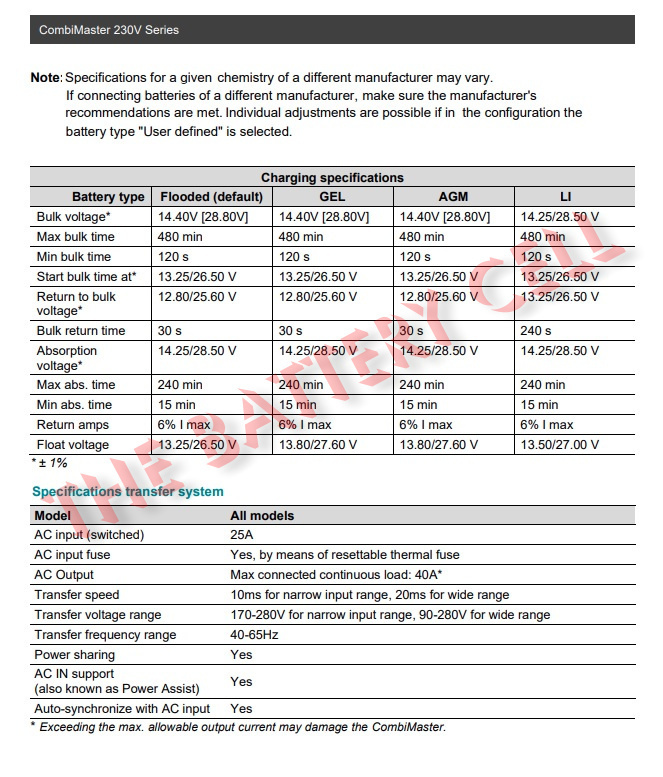

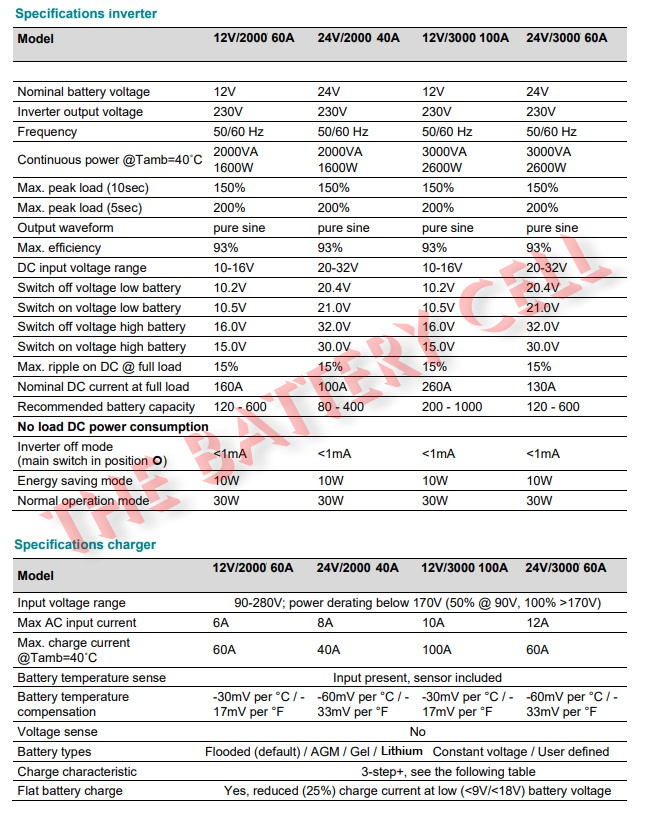

To view Specifications see images.
All purchasers of this product will have a full operating manual supplied.
Specifications
Specifications sine wave inverter
Nominal DC voltage 12 V (10.2–16 V)
Output voltage 230 V
Output frequency 50/60 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 3000 VA / 2600 W
Peak power (30 sec) 4500 VA / 3900 W
Surge power (5 sec) 6000 VA / 5200 W
Max. efficiency 93 %
Battery no-load power consumption 30 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 10 W
Synchronise with mains yes
Specifications battery charger
Input voltage range 170-280 V
Max. input current 10 A (adjustable)
Max. charge current at 40 °C / 104 °F 100 A at 14,25 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation
Specifications transfer system
AC input 25 A (switched)
AC output 38 A
AC input fuse yes
Transfer speed 10 ms
Transfer voltage range wide: 90–280 V / narrow: 170–280 V
Transfer frequency range 40-65 Hz
General specifications
Galvanic isolation yes
Display/read-out LED display
Dimensions, hxwxd 448 x 284 x 155 mm / 17.6 x 11.2 x 6.1 inch
Weight 9.3 kg / 20.5 lb
Compliance CE, E-mark, AZ/NZS
Technical specifications
Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity 300-800 Ah (based on gel batteries, may differ for other types)
Ground relay yes, configurable by means of mechanical jumper
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C / -13 °F to 140 °F
Cooling vario fan
Protection degree IP23 (vertical mounting)
Safety class IEC protection class I
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Protections over-temperature, overload, short circuit, high/low battery voltage
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
MasterBus compatible yes
CZone / NMEA 2000 compatible yes
