COMBIMASTER accessory EASY VIEW 5

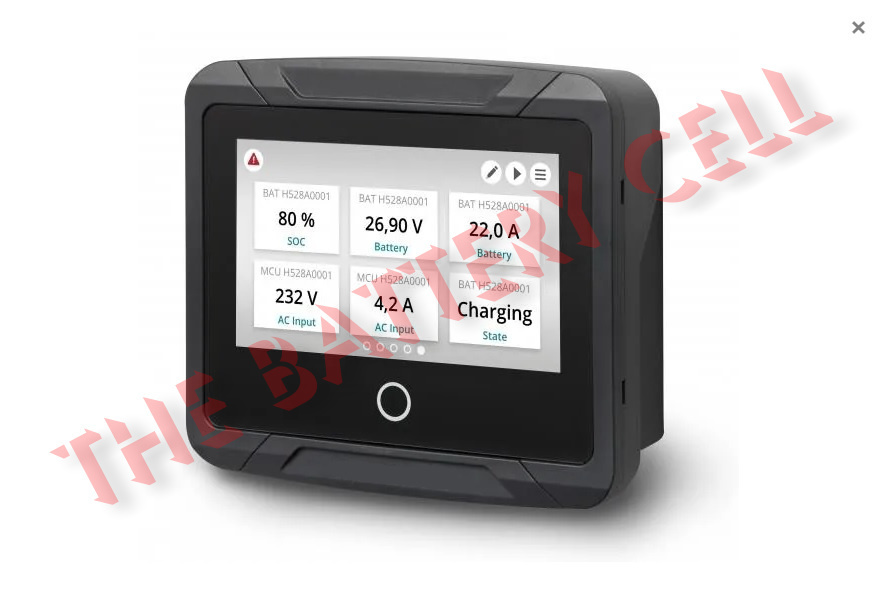

Waterproof System Monitor with 'daylight readable' display and intuitive touchscreen

Price:

NZ$ 764.30 including GST

or four interest-free payments of $191.08 with
Learn More

Product Code:

TBCEASYVIEW5COMBI77010310

Information
Features
Specifications
Applications
Product Enquiry
Associated Items

Controlling your CombiMaster Inverter Charger system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the colour touchscreen and multi-language menu, the display is a pleasure to operate. Easily customizable favourite pages show all relevant system information at a glance. This Unit is also Compatible with all CombiMaster Inverter Chargers and Mastervolt product and systems that accomodate for a controllable display

FEATURES
Water proof, 'daylight readable' colour display.
Intuitive touch control.
Customizable favourite pages.
Log book for warnings and alarms.
Buzzer and Home button.
Easy mounting: front mount, wall mount or retrofit.
MasterBus powered, or 12/24 V input.
Easy updating through MasterBus and USB.
APPLICATIONS
The EasyView 5 completes any CombiMaster, MasterBus and Mastervolt system. With its handy functionality and compact size, the EasyView is ideal for yachts, vehicles and stationary systems.
Applicable in various markets such as marine, mobile (recreational and professional), infrastructure, offshore, off grid and industrial.

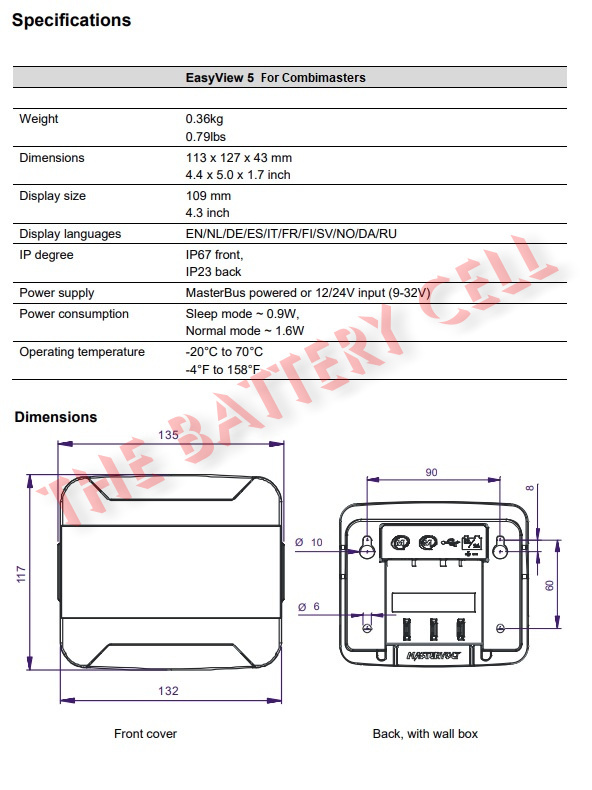

To view Specifications see images.
All purchasers of this product will have a full operating manual supplied.

General specifications
Power supply MasterBus powered, or 12/24 V input (9 - 32 V)
Resolution 480 x 272 pixels
Colour depth 16 bits
Display/read-out 4.3 inch high contrast display with capacitive touch control
Languages on display ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
Mounting panel mounting, flush mounting, MasterView Easy retrofit
Alarms buzzer integrated
Dimensions, hxwxd 113 x 127 x 43 mm / 4.4 x 5.0 x 1.7 inch
Weight 0.315 kg / 0.7 lb
Delivered with UV protection cover, wall mount casing, MasterBus cable

Technical specifications
MasterBus connection yes
Power consumption < 160 mW (idle mode)
Connections 2x MasterBus, USB, 12/24 V
Temperature range (ambient temp.) -20 °C to 70 °C / -4 °F to 158 °F
Protection degree IP67; waterproof front

Customize Favourites.

Customize favourite pages to meet your specific needs for information and control, to show information in the most convenient way.

Adjust Parameters.

Use the EasyView 5 to adjust frequently used settings, like the shore fuse or to switch on your inverter.

Modify System Settings.

In the system page you will find every possible system setting.

Alarms and Logs.

No surprises! The EasyView 5 helps to keep your system in top condition by assisting you with alerts. Logging of the alarms provides valuable insight in the operation of your system.
