Voltage 12
CCA 250
MCA 319
PHCA 498
Capacity 16.5Ah
Weight 5.4kg
Dimensions L: 135mm W: 90mm H: 168mm H with spacer: 176mm
Information
Features
QUADFLEX AGM BATTERY
The perfect battery for motorcycle, ATV's, Personal Watercraft and Snow Mobiles.
Used in Generators, Lawnmowers, Racing and other cycling/starting applications
Maintenance Free, AGM-DRY CELL technology.
More power and more Ah than nearly All other brands in this range.
CCA, CA, MCA, HCA + PHCA cranking ability.
Specifications
| Battery Type | MBTX14AU | |
|---|---|---|
| Voltage | 12 | |
| CCA | 250A | |
| MCA | 319A | |
| PHCA | 498A | |
| Capacity (10HR) | 16.5Ah, C20 17.5Ah | |
| Weight | 5.4kg / 11.0Ibs92 | |
| Dimensions (in / mm) | L: 5.31(135) W: 3.54(90) H: 6.61(168) TH: 6.93(176) | |

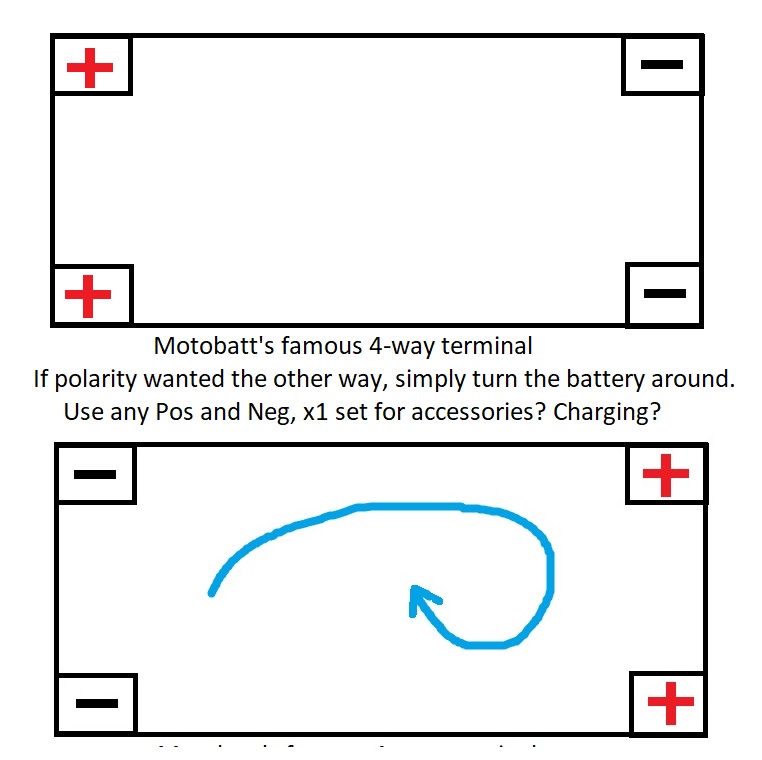

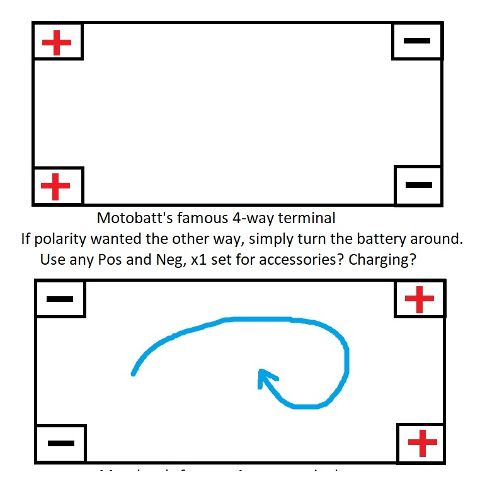

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2, M6x2.5 | |
| Screws | 4, M6X7 | |
| Allen Wrench | 1, 4x4 | |
| Terminal Caps | 4, 12x5.5 | |
| Spacer | 1, 8mm Bottom | |
Applications
COMPATIBLE PART NUMBERS: YTX14AH,YTX14AHL,YTX14AHBS, YTX14AHLBS, YB14A1, YB14A2, YB14AA, YB14AA1, YB14AA2, YB14B1, YB14B2, YB14LA1, YB14LA2, YB14LB2, YB14LA2WS, SYB14LA2, SYB14LB2, 12N143A, 12N143B, ETX15, ETX15L, MBTX14AU, YG14BS, YG14LBS, YG14ALA2, YG14AA2, YG14A2 + OTHERS
