12v 1000cca
Weight: 8.3kg
Length: 315mm
Width: 175mm
Height: 190mm
Recessed SAE Terminals
DIN standard battery
Available in NS60, LN2, LN3 and LN4 sizes, use the PRODUCT ENQUIRY TAB to find out more.
Information
Featuring a built-in jump-start feature, smart BMS protection and under-bonnet installation capabilities, the Lithium Hybrid Starter range is the perfect solution for automotive, marine, 4WD and caravan applications.
With conveniently designed case sizing to easily replace your existing AGM or starter battery, and the utilisation of A123 Lithium Iron Phosphate (LiFePO4) pouch cells, one of the highest performing and safest lithium chemistries. Our hybrid solution will have you doing more of what you love with faster recharge time, greater runtime and up to 50% less weight, compared to AGM equivalent.

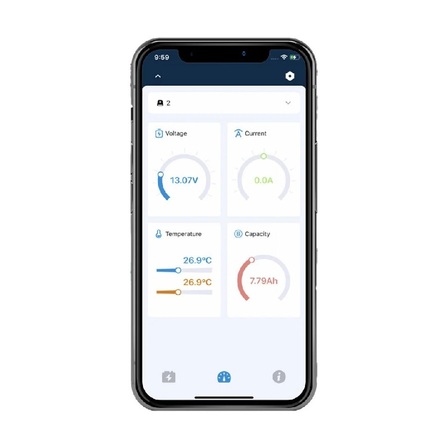

All Lithium Hybrid Starter batteries are able to connect to the Bluetooth monitoring app. It allows users to easily and conveniently access the performance data of their desired Lithium Hybrid battery. In addition, the app can also be used to activate the Jump-Start feature without the need to physically access the battery. An especially useful feature that eliminates the need to pop the hood of your vehicle or if the battery is located in a hard to reach location. To activate the Jump-Start feature, simply open the app and it will automatically prompt you to Jump-Start or charge the battery.
Note: The LN4 model utilises a specially engineered Dual BMS, which allows the battery to discharge and charge at an even higher rate. This allows the battery to be used in winching applications
Features
Features:
Dual BMS- A specially engineered Dual BMS allows the battery to discharge and charge at an even high rate. This allows the battery to be used in winching applications (LN4 size only).
Jump Start Feature- The Jump Start feature is an important function that will give the user more confidence when heading out on their next adventure. With this feature, the BMS will automatically reserve a small amount of capacity in the battery for starting/cranking, if the main capacity is over-discharged. If you do use your main capacity and are unable to start the vehicle, simply press the button on top of the battery, this will release the reserve capacity and give the user 30sec to start the application.
Engineered BMS- One of the core components that is fundamental to the performance of the Lithium Hybrid Starter range is the engineered BMS. What makes this BMS so different compared to others is the use of a wider set of parameters and ability to automatically reserve capacity for the Jump Start feature. Because it does have wider parameters this allows the battery to reach an internal temperature of 80oC before disconnecting and allow a high rate of discharge and charge. This gives installers and users a wide range of flexibility when considering the application suitability and fitment of the battery.
Heat Resistant Technology- The Lithium Hybrid Starter range utilises heat resistant technology to ensure the battery is protected from the effects of extreme heat when placed under a bonnet. This includes a specially designed thermal protection layer and lithium paste which is unique to the A123 pouch cell construction.
Premium A123 Pouch Cells- A123 pouch cells are premium cells that are used by top vehicle manufacturers such as Mercedes and BMW. These cells have been hand-selected by our technical team due to their reliability and inherent ability to withstand a high rate of discharge/charge and resistance to high heat. Because they can withstand high rates of discharge and charge it allows the battery to output up to 1400CCA and 800A of continuous current as well as accept a charge from most vehicle alternators.
Additional Features:
- Bluetooth monitoring
- Drop-in starter battery replacement
- Lightweight LiFePO4 chemistry
- Engineered BMS for high continuous charge/discharge
- Pouch cell design for discharge and charging flexibility
- Jumpstart feature
- High CCA capabilities
- Charge directly from the alternator
- Standard automotive case sizes
- Heat resistant technology for high-heat applications
- IP 56 Rated
- IEC Certified
Warranty Period: Three years.
Conditions:
- The warranty is invalid if the battery has been subject to misuse, abuse or physical damage.
- The warranty is invalid if the battery is not used in accordance with the instruction and warning card provided online/in box.
- The batteries are subject to IEEE Standard 1188 Acceptance Test at time of installation. If they do not meet both, or either, the standards and the published Lithium specifications, the company manufacturer must be notified immediately
and the user should request further instructions.
- The battery will be determined to be defective if it fails to deliver less than 70% of its rated capacity during the warranty period, subject to the conditions listed below:
The residual battery capacity is determined by:
- Fully discharging the battery to 0% SOC at 1C or less
- Fully charging the battery at the recommended voltage and rate for a minimum of 24 consecutive hours
- Fully discharging the battery to 0% SOC at 0.5C or less and 73°F (23°C)
- Full proof of purchase is required
- Additional information which may apply to this warranty are available via our terms and conditions page

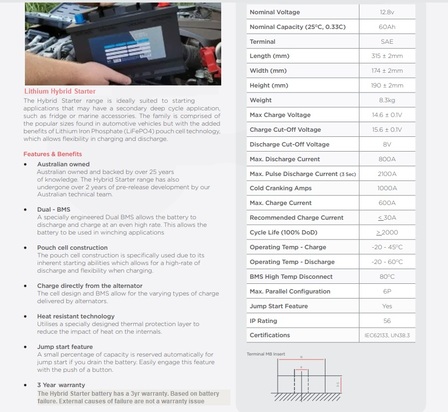

Specifications
Technology: Lithium Iron Phosphate (LiFePO4)
Information Link: View Attachment
Rechargeable
Hazardous & DG Class: (NB IATA Regs may apply) DG9
Voltage: 12.8V
Capacity: 60000mAh / 60Ah
Wattage: 1024Wh
Termination: SAE
Weight: 8.3kg
Length: 315mm
Width/Diameter: 175mm
Height: 190mm
Full Comprehensive manual supplied with product to the wise new owner. This will include info to obtain the App/s for Bluetooth Functionality
Applications
A lithium Replacement for: A6, F21, VRL4, VRL-4, LN4, NPSSAGM80, SSAGM80, AGM80, DIN75AGM, DIN75LAGM, DIN75AGMU, DIN75LAGMU, DIN77AGM, AGM-77, 580 901 080, SNLHLN4MAX, 585200080, F18, T7, H7, LB4, E46, 575500073, F17, 580406074, DIN75, DIN77, DIN77MF, DIN75LMF, MF77, MF77H, 3772, L4, MF58043, MF58211, 580043064, 582101072, 585200080, F18, T7, H7, LB4, E46, 575500073, F17, 580406074, DIN75, DIN77, DIN77MF, DIN75LMF, MF77, MF77H, 3772, L4, MF58043, MF58211, 580043064, 582101072, MF77H, S59096, DIN75LHMF, MF58043, 77HMF, 475T, 3772, S58090AGM, LN4 AGM, DIN75LHAGM, UMF58000, SSAGM77EU, AGM80L4, MF77HSS, 5556 + OTHERS.
