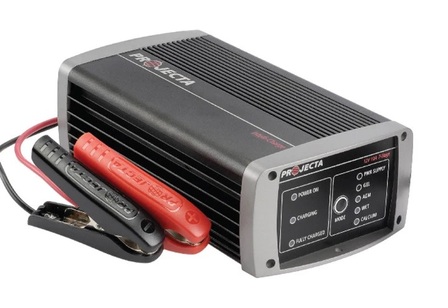

INTELLI-CHARGE 12V 7AMP 7 STAGE AUTOMATIC BATTERY CHARGER

INTELLI-CHARGE 12V 7AMP 7 STAGE AUTOMATIC BATTERY CHARGER
INTELLI-CHARGE 12V 7AMP 7 STAGE AUTOMATIC BATTERY CHARGER

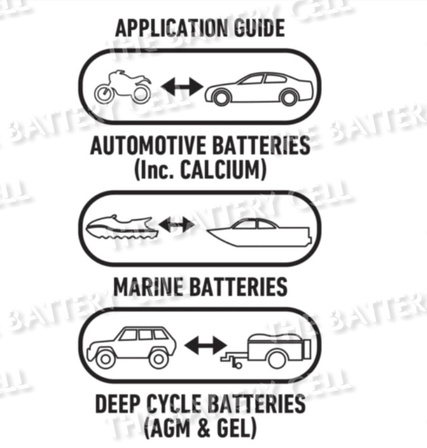

Delivering high quality charge tailored to suit all battery chemistry types. Ideal for use on smaller passenger vehicles through to 4WD's.
Price:
NZ$ 289.00 including GST


or four interest-free payments of $72.25 with
Learn More

TBCIC700-PROJ
Purchase Qty:


THE BATTERY CELL --- Phone 0800 030 999

100% NZ Owned Operated and Proud

Intelli-Charge range of battery chargers are the most advanced lead acid battery charging solution we offer. Featuring world class 7 stage battery charging technology that is guaranteed to maximise performance as well as increase battery life of your battery.
Suitable for the professional or the user that demands much more from their batteries and how they are maintained.

Multi Chemistry Charging: User can set charging profile to suit each batteries chemistry type (GEL, AGM, Wet Cell and Calcium).
Float Charge Mode: Maintains the battery at 100% charger without overcharging or damaging the battery. Allowing for connection to the battery indefinitely without any damage to the cells.
Power Supply Mode: When selected appliances (or load) can safely be run from the battery. An appliance can also be run directly from the battery clamps if required. Such as using the charger as a memory saver when disconnecting battery from vehicle.
Polarity protection: Prevents the outputs from sparking sue to accidental reverse connection or shot circuits.
Over Temperature Protection: Temperature controlled fan and internal over temperature cut off feature.
Switch Mode Technology: Converting 240v AC to 12v using switch mode technology. Which creates a much more compact and powerful charger without sacrificing performance.

Specifications:

Type: 7 Stage
Input (Nominal): 240v AC 50Hz
Input Power: 216w
Output Voltage: 12v
Output Current: 7a
Minimum Start Voltage: 2.5v
Back Drain: 1mA
Deep Cycle Battery Range: 50-140Ah
Automotive Battery Range: 300-800ccA
Marine Battery Range: 350-900mcA
Battery Types: GEL, AGM, Wet Cell and Calcium
Size: 182 x 61 x 108
Weight: 0.95 kg

Charge Control:

Desulphation: High frequency pulse charge up top 11v
Soft Start: 3.5a up to 12v
Bulk: 7a up to 14.1v (GEL), 14.4v (AGM), 14.7v (Wet), 14.7v (Calcium)
Absorption: Constant Voltage until Current Drops to 1.05a
Equalisation (Calcium Mode Only): Constant Current 2.0A up top 16v. Then hold for 60min or 12 hour timeout.
Analysis: Monitor battery for 90 sec.
Recondition: Constant Current (1.05a) for 4 hours until 14.1v (Gel), 14.4v (AGM), 16v (Wet), 16v (Calcium)
Float: 13.7v

Power Supply Mode:

Set Voltage: 13.8v DC
Max Current: 7a
