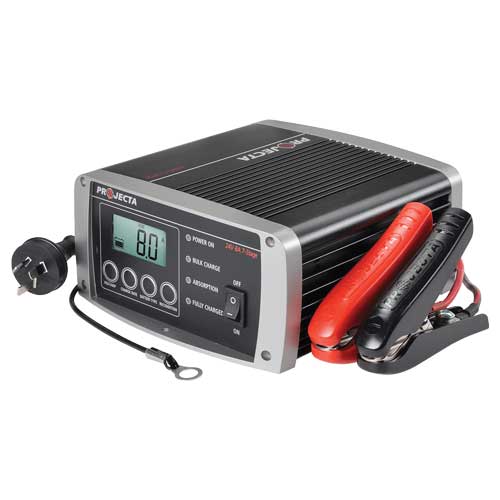

IC800-24 24v 8a 7-stage Multi-Chemistry Charger with remote LCD display


IC800-24 24v 8a 7-stage Multi-Chemistry Charger with remote LCD display
A highly advanced charger for all your 24V battery requirements. Capable of being set to perfectly suit the specific battery chemistry type as well as offering an adjustable charge rate feature to match a large range of battery sizes.
Click on image for more detail

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel

Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging

Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 24V appliances

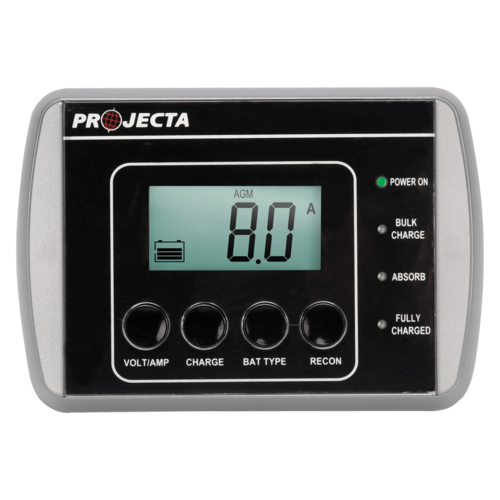

Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead

Shock & Dust Proof
Durable construction and safer charging with spark free and polarity protected connection

Manual IN PDF FOR DOWNLOAD HERE

SPECIFICATIONS

TYPE

7 Stage Automatic

INPUT

240VAC, 50Hz, 480W

OUTPUT

24V

OUTPUT CURRENT

2, 4, 6, 8A

MINIMUM START VOLTAGE

4.5V

BACK DRAIN

Charger 3mA, with remote 4mA

APPROVALS

Electrical Safety, EMC

CHARGE VOLTAGE

28.2V (GEL), 28.8V (AGM),
29.4V (WET), 32.0V (CALCIUM)

L.E.D. CHARGE INDICATION

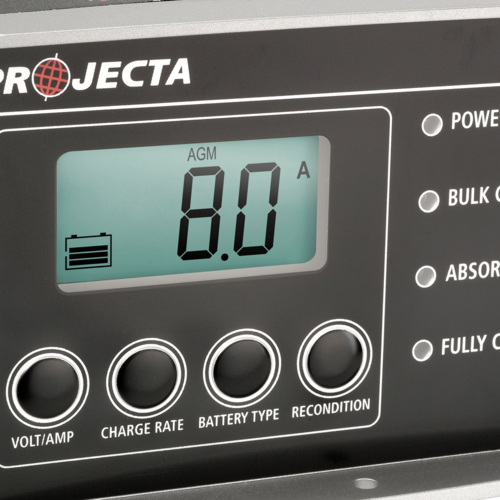

SCREEN

Back lit LCD screen

RED LIGHT ON

Power on

BLUE LIGHT ON

Charging

GREEN LIGHT ON

Fully charged and maintaining,
no need to turn the charger off

BATTERY CHARGE TIMES

IC800-24

VOLTAGE

BATTERY SIZE

CHARGE TIME

AUTOMOTIVE

24V

80–1000CCA

7–24 hrs

MARINE

24V

110–1300MCA

7–24 hrs

DEEP CYCLE

24V

14–160Ah

7–24 hrs

Price:
NZ$ 566.00 including GST
UOM:
each
IC800-24
Purchase Qty:

X
