5 Stage Automatic Charging
Intelli-Charge Lithium utilise a very specific and tailored 5 stage charging algorithm, engineered to get the best out of todays increasingly popular Lithium (LiFePO4) batteries. From the smallest 1 Amp unit right up to the largest and most powerful 50 Amp offering, world class electronics guarantee the battery receives the ultimate charge to ensure maximum life and performance over the life of the battery.
| APPLICATION GUIDE | |||
|---|---|---|---|
|
IC100L |
IC1500L |
IC2500L |
IC5000L |
 |
|
|
|
Features
Comprehensive Kit
Supplied battery clamps and a fused vehicle harness provide charging options

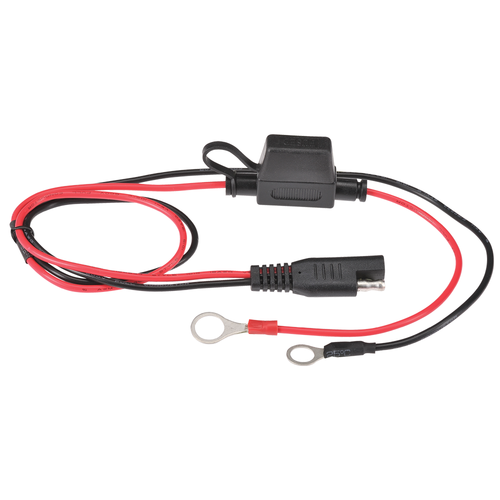

Fused Wiring Harness
3m harness allows permanent connection and features polarity protection

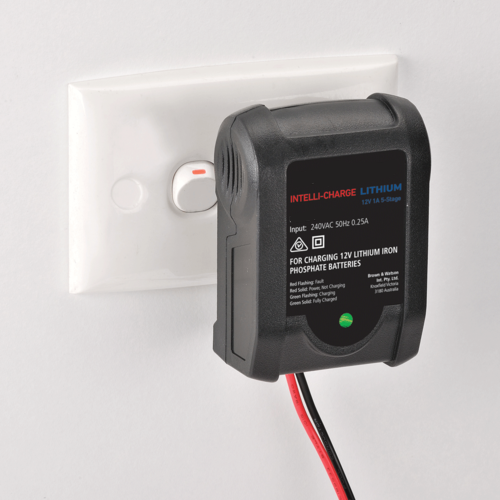

3 Pin Electrical Plug
Plugs directly into standard electrical outlet
Safer Charging
Spark free and polarity protected
L.E.D Indicator
Displays charge status
Specifications
| SPECIFICATIONS | |||
|---|---|---|---|
|
TYPE |
5 Stage Automatic |
||
|
INPUT |
240VAC, 50Hz, 20W |
||
|
OUTPUT |
12V |
||
|
OUTPUT CURRENT |
1A |
||
|
MINIMUM START VOLTAGE |
2.0V |
||
|
BACK DRAIN |
1mA |
||
|
APPROVALS |
Electrical Safety, EMC |
||
|
CHARGE VOLTAGE |
14.5V |
||
|
FLOAT |
13.5V |
||

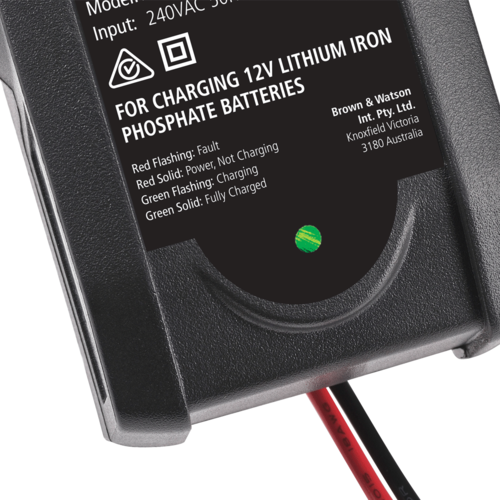

| L.E.D. CHARGE INDICATION | |||
|
RED LIGHT ON |
Power on, not charging |
||
|
RED LIGHT FLASHING |
Fault |
||
|
GREEN LIGHT FLASHING |
Charging |
||
|
GREEN LIGHT ON |
Fully charged and maintaining, |
||
| BATTERY CHARGE TIMES | |||
|
IC100L |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
|
AUTOMOTIVE |
12V |
100–320CCA |
2–10hrs |
|
DEEP CYCLE |
12V |
2–10Ah |
2–10 hrs |
