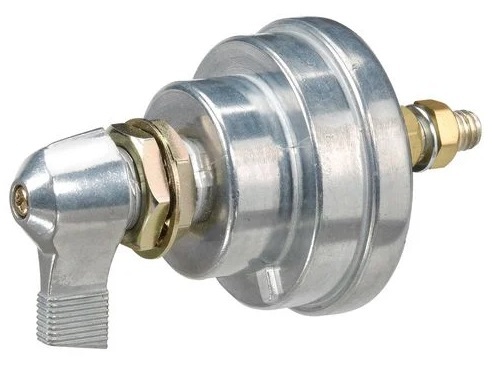

61070, Battery Master Switch Lever Type

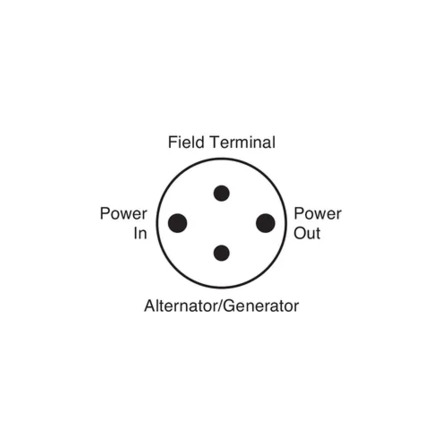

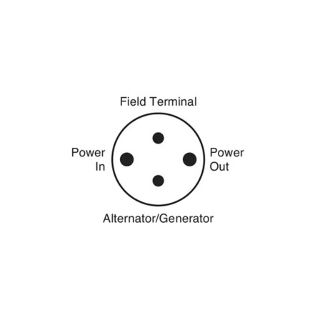

Master disconnect switch with provision for use with alternator/generator field circuit.

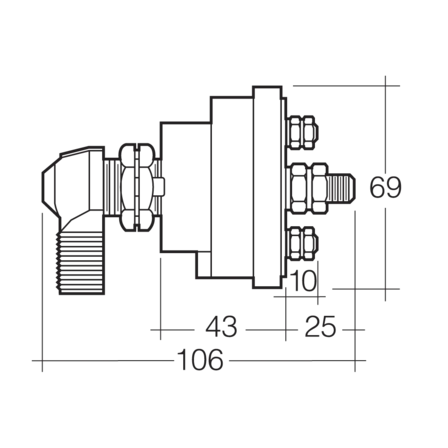

Mounting opening 19mm dia.
Large Terminals:
1000A at 12V for 20 seconds
500A at 24V for 20 seconds
180A at 12V continuous load max.
90A at 24V continuous load max.
Small Terminals:
20A at 12V continuous load max.
10A at 24V continuous load max.
NARVA QUALITY
Master disconnect switch with provision for use with alternator/generator field circuit.
Mounting opening 19mm dia.
Large Terminals:
1000A at 12V for 20 seconds
500A at 24V for 20 seconds
180A at 12V continuous load max.
90A at 24V continuous load max.
Small Terminals:
20A at 12V continuous load max.
10A at 24V continuous load max.
NARVA QUALITY
