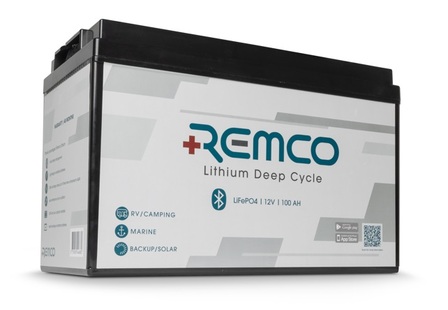

MOBILITY SCOOTER BATTERY 12v 100Ah LITHIUM

MOBILITY SCOOTER BATTERY 12v 100Ah LITHIUM
Recreational Lithium Battery 12v 100Ah
Weighs only 11.7KG with dimensions of 330 x 172 x 223mm and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple
Price:
NZ$ 1,623.00 including GST


or four interest-free payments of $405.75 with
Learn More

TBCRM12-100LFP Mobility
Purchase Qty:


THE BATTERY CELL --- Phone 0800 030 999

100% NZ Owned Operated and Proud

Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.

Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.

Key Advantages of REMCO Lithium

Light Weight vs traditional batteries
3000+ recharge cycles up to 5 times more compared to AGM
Less maintenance and no sulfation
100% Amp hour capacity available
Faster recharge vs traditional batteries
Built-in Battery Management System (BMS)
Connect up to 48V in series or 4 batteries in parallel

ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 1280 Wh
Resistance ≤20 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells Prismatic Cell 100Ah
CHARGE PERFORMANCE
Recommended Charge Current 20 A
Max Charge Current 50 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <15.2 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 330 x 172 x 223 mm
Approx. Weight 11.7 kg
Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP65
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 100 A
Peak Discharge Cut-Off Current 300 A (5 ~15 ms)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms)
Reconnect Voltage 10 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9

DATA SHEET in PDF for download [HERE]
