Voltage 12
CCA 320
MCA 395
PHCA 605
Capacity 21Ah
Weight 6.50kg
Dimensions L: 175mm W: 87mm H: 155mm
Width with side spacer: 100mm
Height with bottom spacer: 175mm
Information
Features

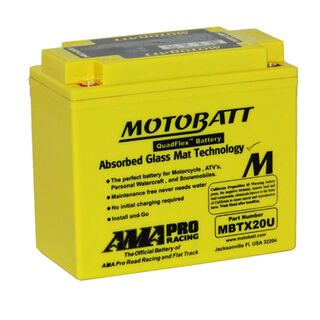

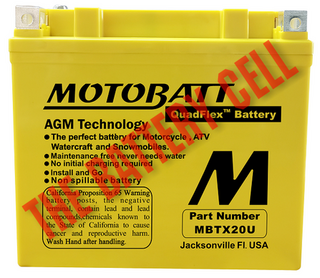

QUADFLEX AGM BATTERY
The perfect battery for motorcycle, ATV's, Personal Watercraft and Snow Mobiles.
Used in Generators, Lawnmowers, Racing and other cycling/starting applications
Maintenance Free, AGM-DRY CELL technology.
More power and more Ah than nearly All other brands in this range.
CCA, CA, MCA, HCA + PHCA cranking ability.
Specifications
| Battery Type | MBTX20U | |
|---|---|---|
| Voltage | 12 | |
| CCA | 320A | |
| MCA | 395A | |
| PHCA | 605A | |
| Capacity (10HR) | 21Ah, C20 22.3Ah | |
| Weight | 6.50kg / 14.33Ibs | |
| Dimensions (in / mm) | 6.89(175) W: 3.43(87) H: 6.10(155) TW: 3.94(100) TH: 6.89(175) |
|

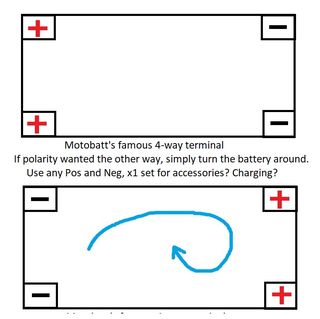

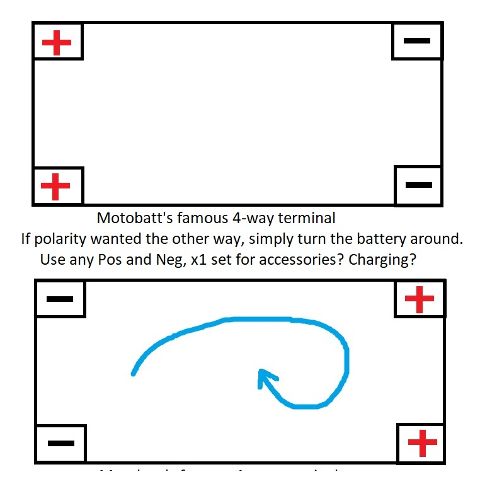

| Assembly Figure Terminal Locations | 4 |  |
| Terminals | 2x Blocknut M6 | |
| Screws | 2x Screws M6x12 | |
| Terminal Caps | 2 Black, 2 Red PART | |
| Spacers | X2, 20mm Bottom, 13mm Back |
|
Applications
COMPATIBLE PART NUMBERS: YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL, ETX16, ETX16L, ETX20, ETX20L, MBTX20U, PC535, PC625, YG20BS, YG20LBS, YG19CLBS, YG19LBS, YG10BS + MANY OTHERS
