Designed for maintenance charging (trickle-charging) of 12V lead-acid batteries.
GREAT for infrequently used Batteries, ideal for Rural equipment seldom used out in the pasture.
And more...
Information
GREAT for infrequently used Batteries, ideal for Rural equipent seldom used out in the pasture, Power garden lighting & 12V water pumps, jet-ski batteries, moped batteries, motorcycle batteries & lawn mower batteries. Can be used unregulated (without solar charge controller). Easy direct connection to batteries with 3M PV cables with positive (+) & negative (-) alligator clamps.
Features
Features
Ideal for garden lighting & charging sealed lead-acid batteries.

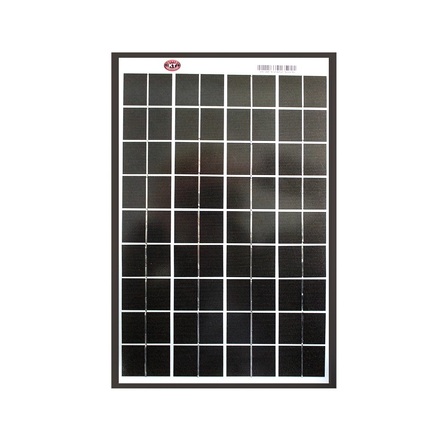

Monocrystalline, 12V solar panel.
3M positive & negative PV cables with alligator clamps.
Quality construction with premium black framing.
Individually barcoded For warranty registration recording.
Five accreditation certificates.
Dimensions: 355mm (H) X 225mm (W) X 17mm (D)
Specifications
Specifications:
Power Tolerance +3%
Maximum Power (Pmax) 10Wp
Maximum Power Voltage (Vmp) 18.0V
Maximum Power Current (Imp) 0.56A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.5V
Short Circuit Current (Isc) 0.61A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
Dimensions & Weight:
Dimensions (Height): 355mm
Dimensions (Length): 225mm
Dimensions (Depth): 17mm
Panel Weight: 1.10Kg
