Ideal for dual battery set-ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged & ready to go.

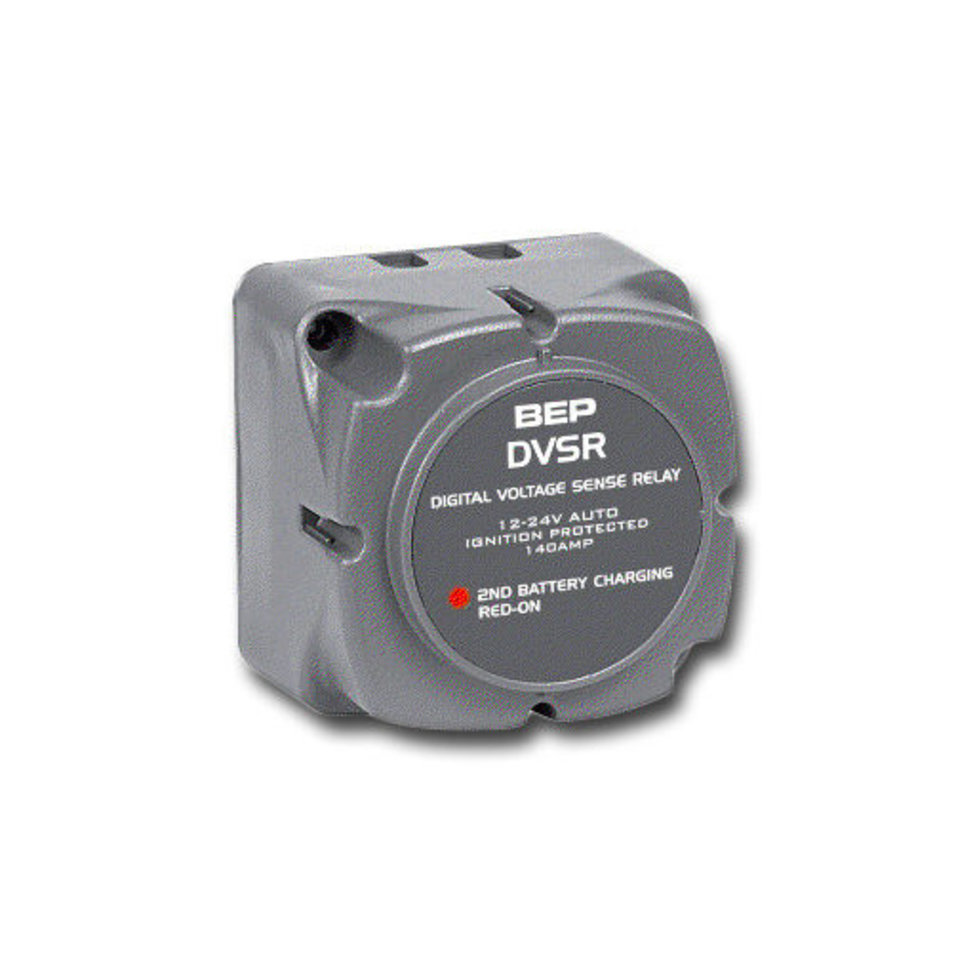

Dual sense and dual voltage model This is a new product from BEP It functions the same as their old dual sense VSR's, but has several extra features Dual sense Multi voltage (12/24 volts) Can be switched externally by the ignition or a separate switch. Has an output so you can put an LED on the dash to see the DVSR's operation.
Features
DIGITAL VOLTAGE SENSING RELAY DUAL BATTERY CHARGING MADE EASY Automatically charges two separate battery banks Protects electronics from harsh start up spikes Prevents start batteries from becoming flattened by domestic loads
Features: The DVSR is connected between two battery banks. When the DVSR senses a charging voltage (13.4/26.8V) on either of the batteries it automatically activates and joins the two battery banks together so they charge as one bank.
Allows charging of two batteries from one charging source Provides priority charging to engine starting batteries before combining second battery bank for charging Dual sensing - the DVSR senses both of the connected batteries and will activate when a charging voltage is present on either battery
Specifications
When the DVSR senses that the batteries are not being charged (voltage drops to below 12.8/26.5v) the DVSR deactivates separating the two batteries into two separate banks. Protects on board electronics from harmful electrical spikes from starter and winch motors
Specifications Continuous 125 Amps Intermittent 140 Amps Ignition Protected UL1107 Auto sensing system voltage 12 or 24 v (max 32 Volts)
