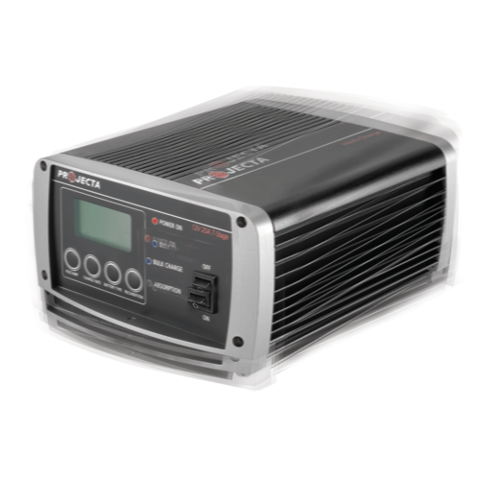

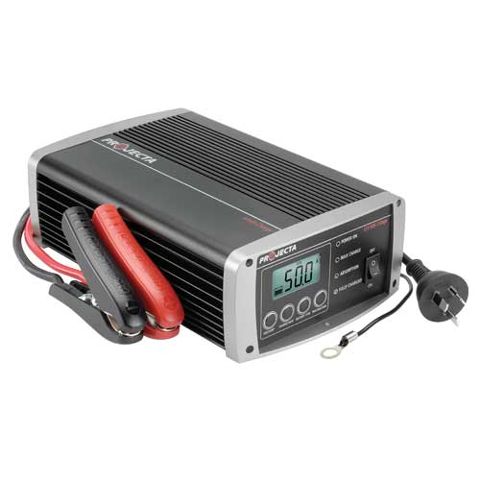

IC5000 12v 50a 7-stage Multi-Chemistry Charger with remote LCD display (FREE Delivery)


IC5000 12v 50a 7-stage Multi-Chemistry Charger with remote LCD display (FREE Delivery)
12v 50a 7-stage Charger. An extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts.

TYPE 7 Stage Automatic
INPUT 240VAC, 50Hz, 820W
OUTPUT 12V
OUTPUT CURRENT 2, 6, 12, 25, 50A

Click image for more options.

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel

Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging

Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 12V appliances

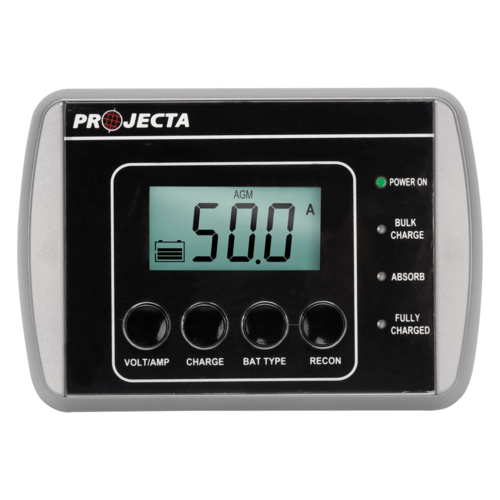

Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead

Shock & Dust Proof
Durable construction and safer charging with spark free and polarity protected connection

Manual IN PDF FOR DOWNLOAD HERE

SPECIFICATIONS

TYPE

7 Stage Automatic

INPUT

240VAC, 50Hz, 820W

OUTPUT

12V

OUTPUT CURRENT

2, 6, 12, 25, 50A

MINIMUM START VOLTAGE

1.0V

BACK DRAIN

Charger 1mA, with remote 2mA

APPROVALS

Electrical Safety, EMC

CHARGE VOLTAGE

14.1V (GEL), 14.4V (AGM),
14.7V (WET), 16.0V (CALCIUM)
L.E.D. CHARGE INDICATION

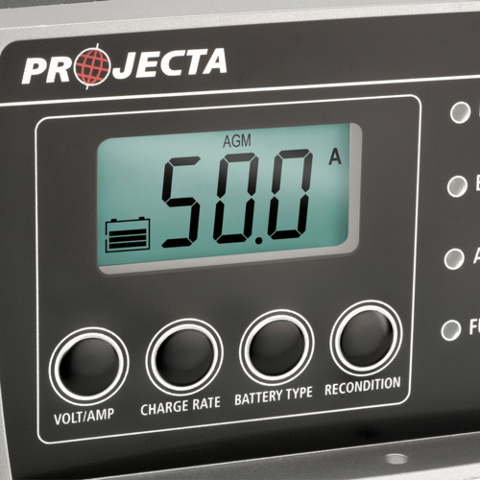

SCREEN

Back lit LCD screen

RED LIGHT ON

Power on

BLUE LIGHT ON

Charging

GREEN LIGHT ON

Fully charged and maintaining,
no need to turn the charger off

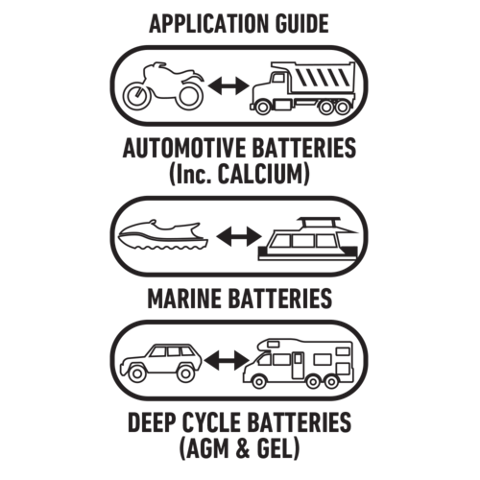

BATTERY CHARGE TIMES

IC5000

VOLTAGE

BATTERY SIZE

CHARGE TIME

AUTOMOTIVE

12V

80–6000CCA

7–24 hrs

MARINE

12V

110–8300MCA

7–24 hrs

DEEP CYCLE

12V

14–1000Ah

7–24 hrs
Price:
NZ$ 1,099.00 including GST
