This award-winning device offers next-level performance and supports nearly any system with ease. Engineered for robustness and efficiency, it offers forward-thinking technology that ensures peace of mind in any off-grid setup. Or Dual Battery set-up.
This package comes with the 500A high-end comprehensive shunt.
View Images.
Information
View TABS for more information. And/or make contact if you need any more Info.
Features

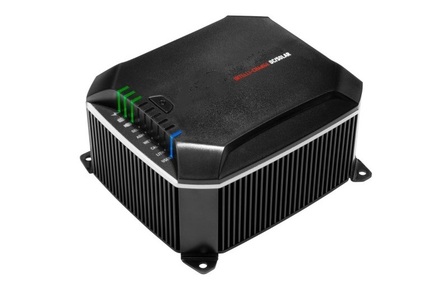

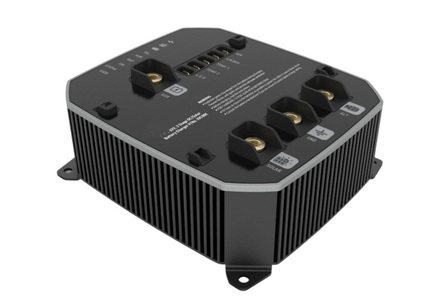

DC-CHARGER FEATURES
This super-efficient design is engineered to perform reliably in hot conditions. It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K).
Fully potted with thermal epoxy resin, it ensures durability and resistance.
Top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity.
Engineered to meet heavy vehicle standards, it is resistant to vibration and shock.
Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates.
It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas.
It also includes a convenient lithium wake-up mode for one-button charging activation, even if the battery's BMS is off.
The Intelli-IQ is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely.

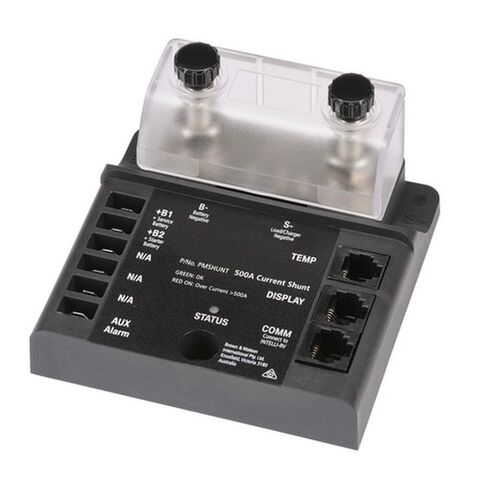

SHUNT FEATURES
compatible with all PM2xx, PM3xx and PM4xx series systems and AGM/GEL/Wet/Lithium battery types.
By wiring an inverter to the external shunt, the inverter’s power draw is accurately represented and accounted for on displays.
Compatible with all PM2xx, PM3xx and PM4xx series systems and AGM/GEL/Wet/Lithium battery types
installers can now wire an inverter to the external shunt, which will communicate with an INTELLI-RV system.
Specifications
DC CHARGER KEY SPECIFICATIONS
OUTPUT CURRENT (A)
Input 9–11Vdc 37A, Input 11–32Vdc 50A
BATTERY CHEMISTRY
GEL, AGM, Wet, Calcium, Lithium (LiFePO4)
CHARGE STAGES
5 Stage
MAX SOLAR INPUT
32Vdc, 800W
STANDBY CURRENT DRAW
8mA
OPERATING TEMPERATURE
-10°C to +90°C
SMART ALTERNATOR - 12V VEHICLE (Turn On/Turn Off)
12.2–20V/<11.9V
SMART ALTERNATOR - 24V VEHICLE (Turn On/Turn Off)
24.4–32V/<23.8V
CONVENTIONAL ALTERNATOR - 12V VEHICLE (Turn On/Turn Off)
13.4–16.5V/<12.8V
ALTERNATOR INPUT VOLTAGE
9–32Vdc
CONVENTIONAL ALTERNATOR - 24V VEHICLE (Turn On/Turn Off)
26.8–32V/<25.6V
IP RATING
IP68, IP69K
APPROVALS & SAFETY STANDARDS
EMC, AS/NZS CISPR11 Class V, R10
SHUNT KEY SPECIFICATIONS
OPERATING TEMPERATURE
–20 ~ 50°C
BATTERY CHEMISTRY
GEL, AGM, Wet, Lithium (LiFePO4)
STORAGE TEMPERATURE
–30 ~ 70°C
VOLTAGE ACCURACY
±0.3%
VOLTAGE
7–95V
IP RATING
IP20
If you request any other Info, please make contact
