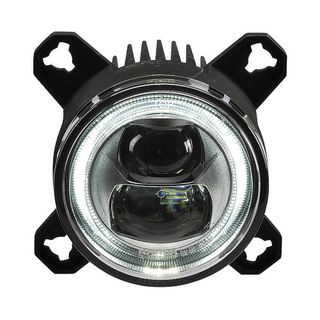

71989, Delivering superior performance and visibility, this premium low beam headlamp is ideal for OE fitment to modern trucks and buses. Including a built-in daytime running/position light for unique styling and convenience in one lamp

RRP:

NZ$ 730.45

Price:

NZ$ 576.93 including GST

or four payments of $144.23 with
Learn More

Product Code:

TBC-71989

Stock Status

In Stock

Information
Specifications
Product Enquiry
Associated Items

Polycarbonate lens
Die-cast aluminium housing and integrated Deutsch® connection
Fully sealed (IP66)

Technical Information
INPUT VOLTAGE RANGE:   9-33V
CURRENT DRAW   Low Beam: 1.8A at 12V, 0.9A at 24V. DRL: 1.0A at 12V, 0.5A at 24V. Position: 0.1A at 12V, 0.1A at 24V.
LP RATING   IP66
SIZE   Diameter: 90mm

Complete width: 107mm
Lens diameter: 90mm
Thickness (LENGTH): 90mm
