6/12/24V 12a Charger with Engine Start
6/12/24V 12a Charger with plenty of power, engine start function and the ability to charge 6, 12 or 24V batteries, it is perfectly suited to mechanical workshops and auto electricians.
Click image for more options.
Price:
NZ$ 889.00 including GST


or four payments of $222.25 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
HDBC20
Stock Status
In Stock
Purchase Qty:

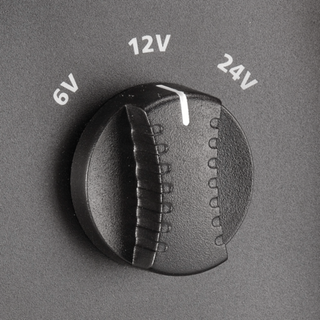

Multi-Voltage Operation
Adjustable to suit 6, 12 or 24 Volt operation

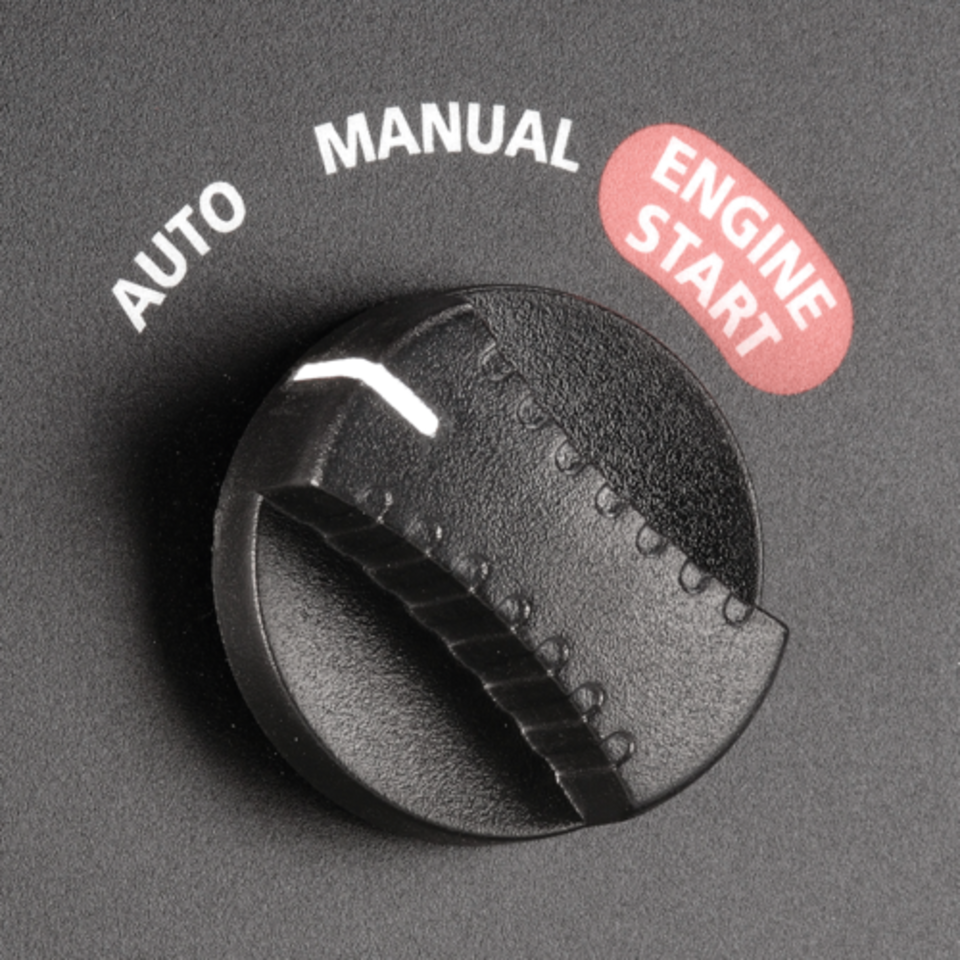

Automatic Or Manual
Charging options keep the operator in control

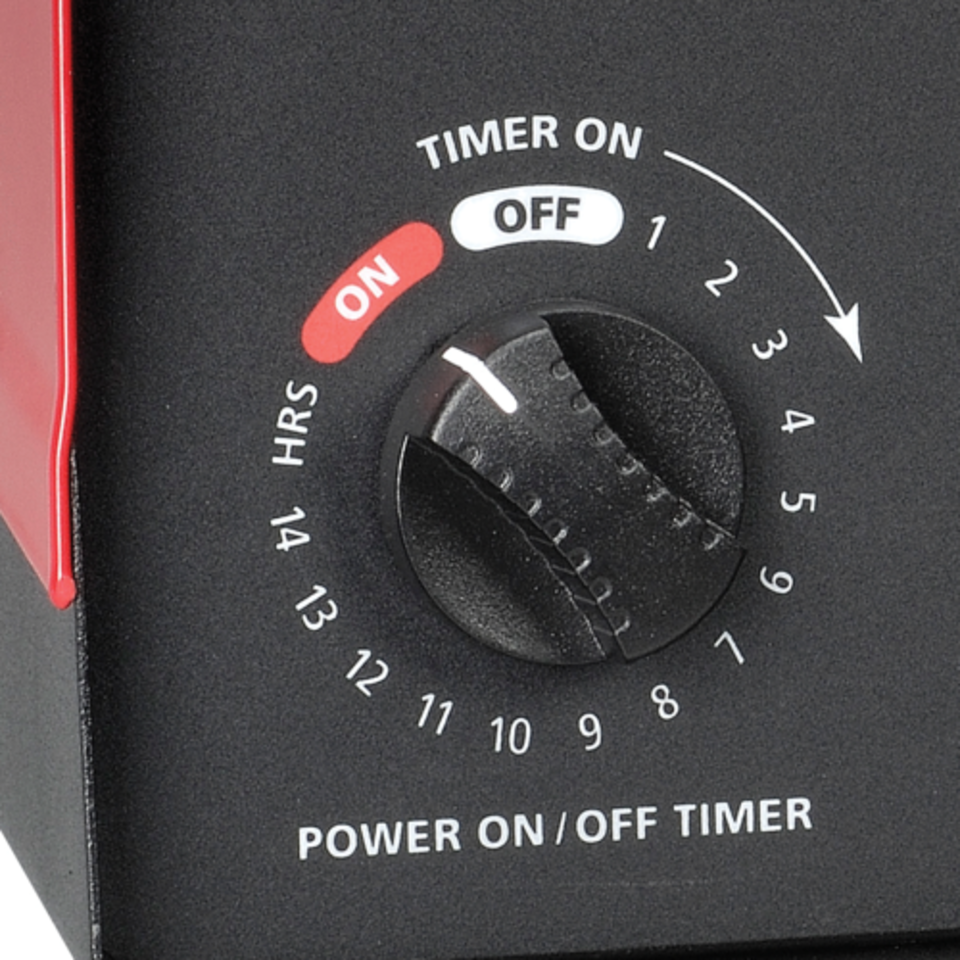

0–14 Hour Timer
Automatically turns charger off at set time

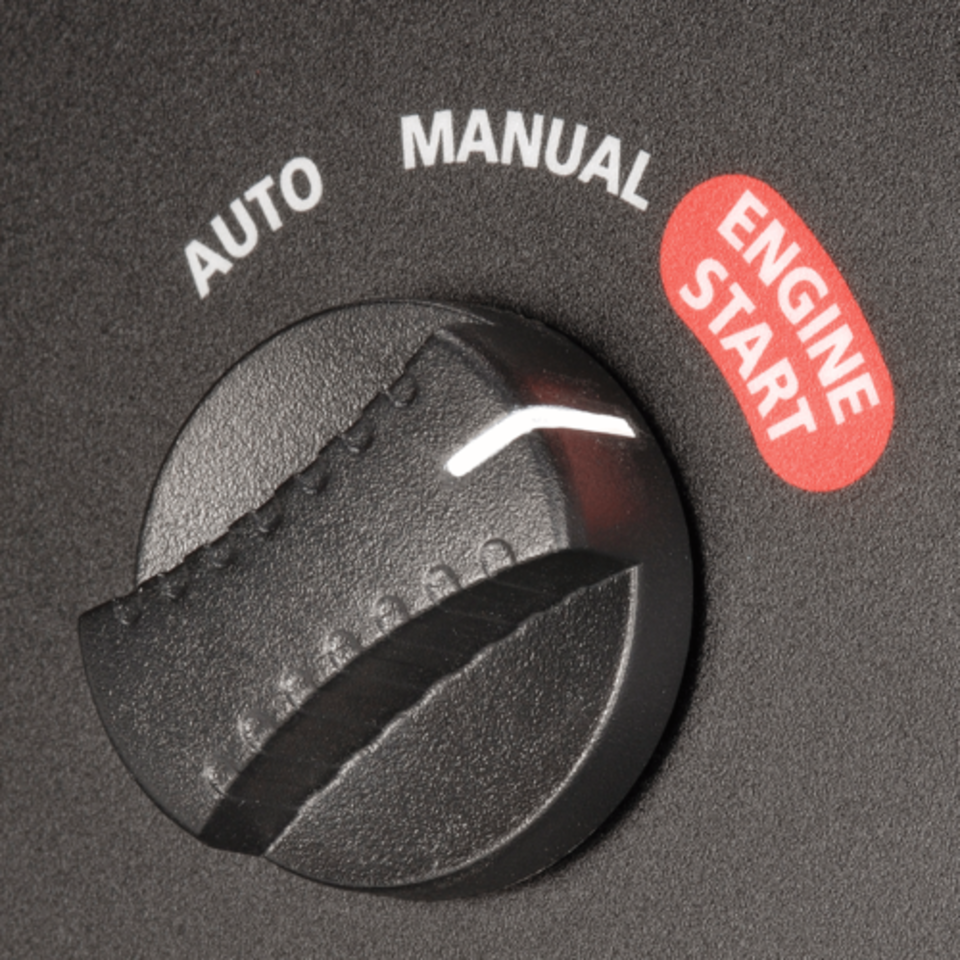

Engine Start Function
Starts vehicle with a flat battery after a controlled 5 minute charge (subject to battery condition)

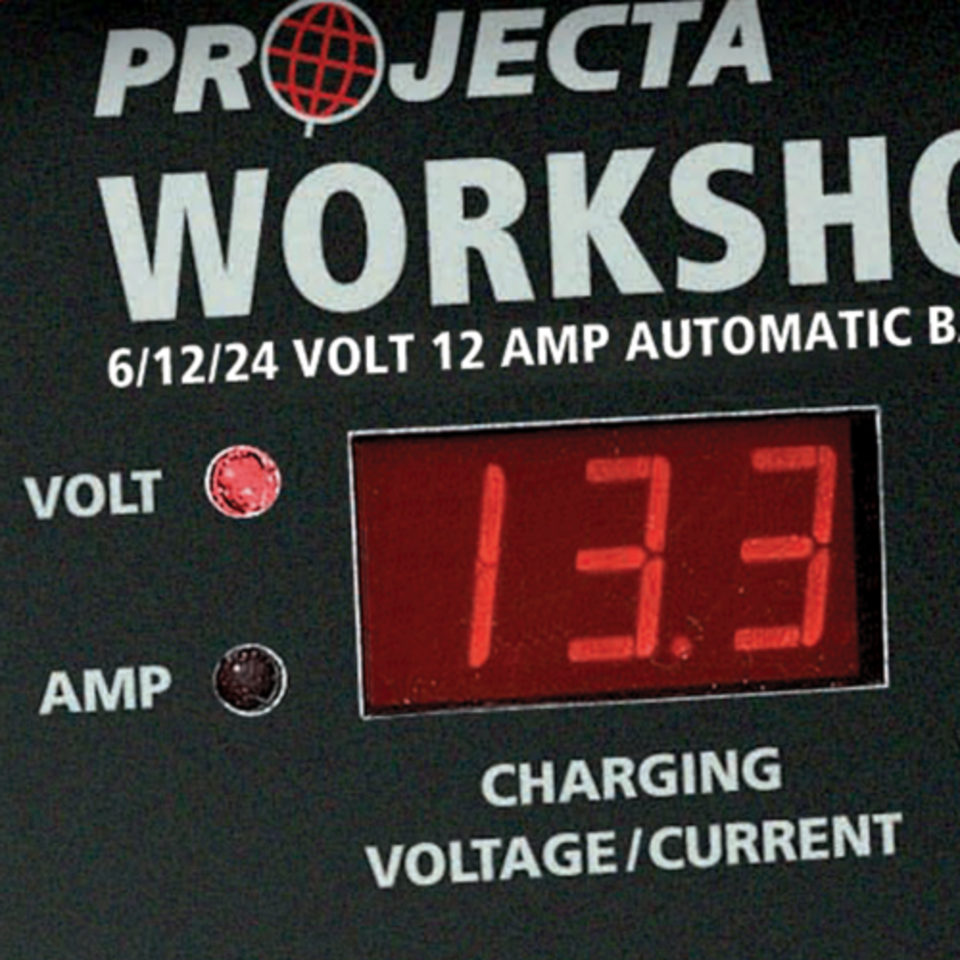

L.E.D Display
Displays Volt and Amp readings for accurate charge status\

HDBC20 AND HDBC35 MANUAL FOR VIEW/DOWNLOAD HERE

SPECIFICATIONS

TYPE

2 Stage Automatic & Manual

INPUT

240V, 50Hz, 324W

OUTPUT

12.0A at 6.0V
12.0A at 12.0V
7.7A at 26.0V

ENGINE START

5 cycles – 5 min on, 5 mins off
6V: 50A at 3.6V
12V: 50A at 7.2V
24V: 25A at 14.4V

CHARGE CONTROL

Cut out:
Cut in:
Start:		 6V
7.1V
6.7V
0.0V		 12V
14.2V
13.4V
0.0V		 24V
28.4V
26.8V
0.0V

APPROVALS

Electrical Safety, EMC
L.E.D. CHARGE INDICATION

RED LIGHT ON FLASHING

Overload

SECOND RED LIGHT ON

Power on

SECOND RED LIGHT FLASHING

Reverse connection

AMBER LIGHT ON

Charging

GREEN LIGHT ON

Fully charged

L.E.D SCREEN

Voltage / Current
BATTERY CHARGE TIMES

HDBC20

VOLTAGE

BATTERY SIZE

CHARGE TIME

AUTOMOTIVE

6, 12, 24V

450–12000CCA

6–15 hrs

MARINE

6, 12, 24V

600–1400MCA

8–18 hrs
