THE BATTERY CELL --- Phone 0800 030 999

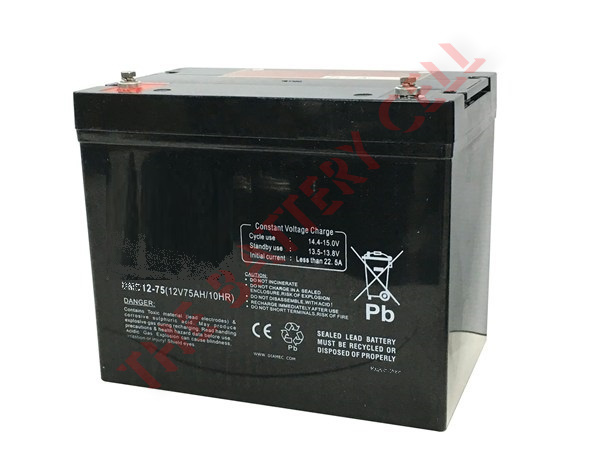

AGM Dry Cell Deep Cycle batteries have many applications from camping and outdoor activities, to running remote area power systems.
Reinforced lead frame stopping the plates from buckling under heavy discharge current or applications with vibration and "thudding" such as Marine applications.
ABsorbent Mats expand and make these battereis virtually vibration proof.
You CAN mount it in any position, but as is the design -it is recommended to install an AGM battery upright. An AGM battery will perform perfectly in any orientation, install in an alternate orientation IF absolutely required.
Length : 260mm
Width : 168mm
Height : 211mm
Weight : 20.7kg
DC Voltage : 12V
Amp Hour Rating : 75Ah (20hr)
20 Hour Capacity : 77Ah
10 Hour Capacity : 75Ah
5 Hour Capacity : 62Ah
1 Hour Capacity : 46Ah
Connection Type : M6 Bolt/Nut
Type of battery : SLA Block
Recharging Voltage : 14.4V, 15V
Standard Recharge Current : 8A
Un-maintained Discharge Properties : 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months
Battery usage : Power Storage and Delivery, Cycling.
Battery Chemical Composition : Absorbed Glass Mat Lead
Battery Peak Current : 1125A

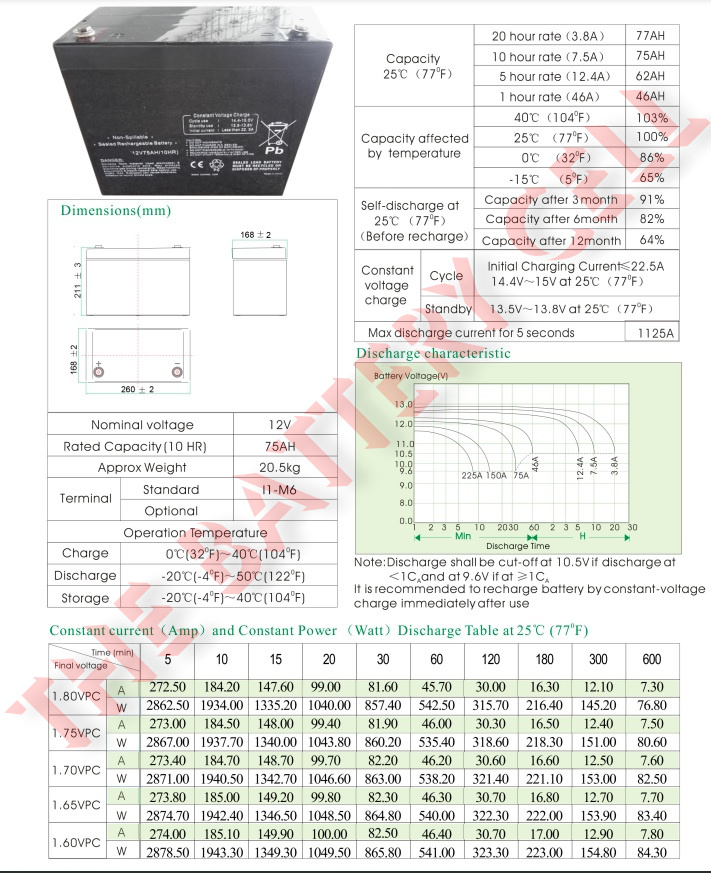

Full Characteristic Specifications available in PDF [HERE]
