12V 75Ah LiFePO4 Lithium Deep Cycle Battery
Recreational Lithium Battery 12v 75Ah
Weighs only 9.5KG with dimensions of 260Lmm x 172Wmm x 209Hmm (GRP24) and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple
Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
Contact us to arrange OR put the desired collection location in the SPECIAL INSTRUCTIONS when making your purchase.
Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.
Features

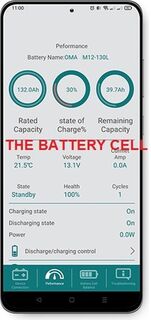

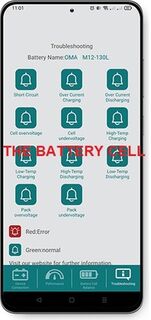

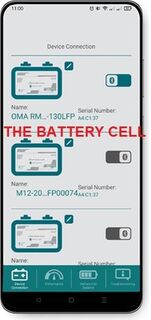

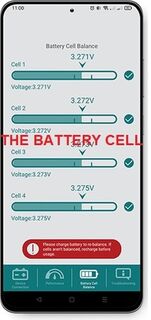

Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.
Light Weight vs traditional batteries 3000+ recharge cycles up to 5 times more compared to AGM Less maintenance and no sulfation 100% Amp hour capacity available Faster recharge vs traditional batteries Built-in Battery Management System (BMS) Connect up to 48V in series or 4 batteries in parallel
FAST CHARGING and we "still" recommend Lithium Battery Chargers for Lithium Batteries
Specifications
ELECTRICAL PERFORMANCE Nominal Voltage 12.8 V Nominal Capacity 78 Ah Capacity @ 15.6A 300 min Energy 998.4 Wh Resistance ≤35 mΩ @ 50% SOC Self Discharge <3% / Month Cells 32700 6Ah CHARGE PERFORMANCE Recommended Charge Current 16 A Max Charge Current 40 A Recommended Charge Voltage 14.6 V Charge Cut-Off Voltage <15.2 V (0.5 ~ 1.5 s) Reconnect Voltage >14.4 V Balancing Voltage <14 V Maximum Batteries in Series 4 Maximum Batteries in Parallel 4 MECHANICAL PERFORMANCE Dimension (L x W x H) 260 x 172 x 209 mm Approx. Weight 9.5 kg Terminal Type M8 Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m) Bluetooth Yes Case Material ABS Enclosure Protection IP65 DISCHARGE PERFORMANCE Continuous Discharge Current 50 A Maximum contiuous Discharge Current 100 A Peak Discharge Cut-Off Current 300 A (5 ~15 ms) Recommended Low Voltage Disconnect 10 V Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms) Reconnect Voltage 10 V Short Circuit Protection 200 ~ 600 µs TEMPERATURE PERFORMANCE Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC) Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC) Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC) High Temperature Cut-Off 149 ºF (65 ºC) Reconnect Temperature 118 ºF (48 ºC) COMPLIANCE Certifications CE UN38.3 UL1642 & IEC62133 Shipping Classification UN 3480, CLASS 9
