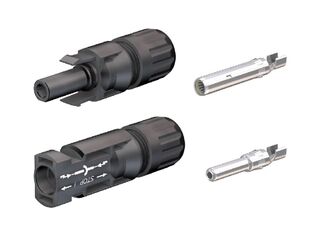

MC4 Solar Connectors (Pair)
MC4 Solar Connectors are high quality connections.
They are commonly used to connect to PV panels.
Simple to both set up and remove thanks to the quick snap-in locking mechanism and safety lug release.
Most panels 80watt or higher will have this type of connection at the end of the cables. You will need a set of these (or more) when connecting your cable to the panels.
Includes pins with crimpable ends for attaching to cables.
T'V certified, IP65 rated and NEC 2011 compliant.
MC4 Solar Connectors are high quality connections.
They are commonly used to connect to PV panels.
Simple to both set up and remove thanks to the quick snap-in locking mechanism and safety lug release.
Most panels 80watt or higher will have this type of connection at the end of the cables. You will need a set of these (or more) when connecting your cable to the panels.
Includes pins with crimpable ends for attaching to cables.
T'V certified, IP65 rated and NEC 2011 compliant.
Price:
NZ$ 19.90 including GST
MC4 SET
Specifications
Insertion Force: < 60N
Withdrawal Force: > 60N
Rated Voltage: 1000V DC
Rated Current: 30A
Degree of Protection: IP65
Contact Resistance: <0.5mO
Compatible with Cable types: 4mm^2 & 6mm^2
Temperature Range: -40C ~ 85C
Flame Class: L94-VO
Dimensions (each plug): ~60mm x 16mm diameter
