Coin Batteries / Button Cell Batteries

A generic Battery Cross reference chart. for you to find your battery replacement.
If you are not sure... Contact Us.
Click for more options.

V10GA -A common Button cell battery for various uses, most common in Calculators. Click image for more details, buy options and cross references. GP389, 389, V389, D389, LR54, SR54, SR1130W, SR1130, LR1130, 189, GP189, S1131E, L1131, G10, V10GA, RW89626. QUALITY

System = Alkaline
Voltage = 1.5V
Diameter = 11.6mm
Height = 3.04mm
Click on image for more options.

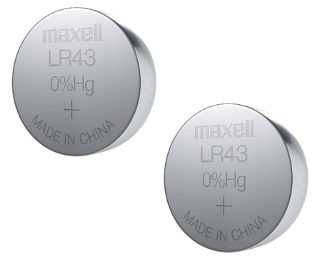

Equivalent replacement for batteries 186, 1176A, 186-1, G12A, GP86A, L1142, LR1142, LR43, RW84, V12GA, GP186, L1142F, 10L124, G12-A
V12GA -Another very popular and common sized battery for a multitude of applications. QUALITY
Chemistry= Alkaline.
1.5 Volts.
Dimensions= 11.6 mm x 4.2 mm
Click image for more options.

15V Alkaline Specialised Test Cell

Replaces Eveready version that has ceased production.

PRIMARY CELL - DO NOT RECHARGE.
Click on image for more options.

Equivalent replacement for batteries: CR1216, DL1216, ECR1216, BR1216, 280-208, DL1216B, BR1216-1W, CR1216-1W, KCR1216, LM1216, 5034LC + others.
Voltage: 3v
Size: 1.6mm x 12.5mm
QUALITY.
Click on image for more options.

Replaces: CR1220, DL1220, ECR1220, BR1220, 280-208, DL1220B, BR1220-1W, CR1220-1W, KCR1220, LM1220, 5012LC, SB-T13, L04 + others. QUALITY
Voltage: 3v
Size: 2.0mm x 12.0mm
Click image for more options.

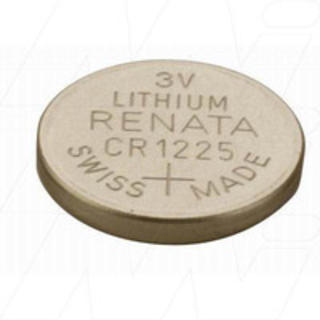

The CR1225 battery is a 3V button cell battery. Often used in small electronics.
(Some brands use BR in place of the CR) QUALITY

12.5mm diameter
2.5mm height
Click on image for more options.

3V Lithium Photo Battery replaces CR123A, CR123AS, DL123A, EL123A, K123L 1.55Ah, Panasonic, CR123A-BP1.
Compatible Model Numbers:
CR123A, CR123AS, DL123A, EL123A, K123L, CR123A-BP, CR123A-BP1, Novametrix RAM, Sigma SD-9, Toshiba PDR-2, Toshiba PDR-5, Zoll AED Defibrilator (10 batteries required)
Voltage: 3V
Wattage: 8.4Wh
Capacity: 1.4Ah
Diameter: +/-17.0mm, Height: 34.5mm, Weight: 40.2g
Click image for more options.

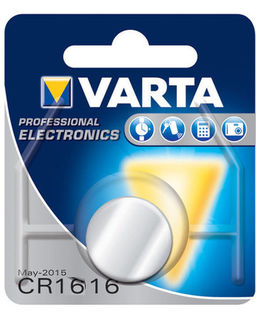

Equivalent replacement for batteries: CR1616, DL1616, ECR1616, BR1616, 280-209, DL1616B, BR1616-1W, CR1616-1W, KCR1616, LM1616, 5021LC, L11, L28, YA, CD1616 + others. QUALITY
Voltage: 3v
Size: 1.6mm x 16.0mm
Click image for more options.
Varta =quality + performance.

Equivalent replacement for batteries: CR1620, DL1620, ECR1620, BR1620, 280-208, DL1620B, BR1620-1W, CR1620-1W, KCR1620, LM1620, 5009LC, L08, EA + others. QUALITY
Voltage: 3v
Size: 2.0mm x 16.0mm
Click on image for more options.

Equivalent replacement for batteries: CR1632, BR1632, 1632.
QUALITY
Voltage: 3v
Size: 3.20mm x 16.0mm
Click on image for more options.

Equivalent replacement for batteries: 280207, 2012, BR2012, BR20121W, CR20121W, DL2012, DL2012B, ECR2012, KCR2012, LM2012, SBT15, CR2012. QUALITY

Voltage: 3v
Size: 1.2mm x 20.0mm
Click image for more options.

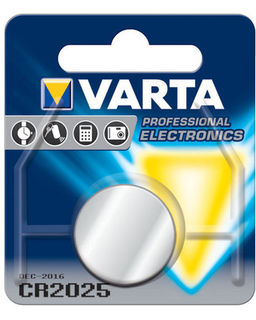

Equivalent replacement for batteries
CR2025, DL2025, ECR2025, NA, BR2025, 208-205, DL20256B, BR2025-1W, CR2025-1W, KCR2025, L12, LM2025, SB-T14, LF1/2V, 5003LC + others. QUALITY
Voltage: 3v
Size: 2.5mm x 20.0mm
Click on image for more options.

3V Button / Coin Lithium Specialised Cell PCB Mount 220mAh, Panasonic, CR2032-1HFE.

Technology: Lithium Manganese Dioxide (LiMnO2)
Voltage: 3V
Minimum Capacity: 220mAh
Diameter: 20mm, Height: 3.2mm, Length: 3.1mm
Weight: 3.1g
not a rechargeable cell.
Click image for more options.

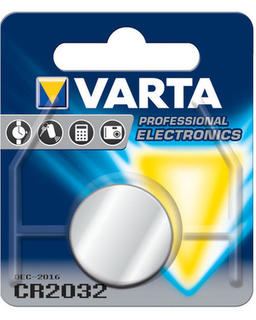

Equivalent replacement for batteries; CR2032, DL2032, BR2032, KL2032, L2032, ECR2032, 5004LC, KCR2032, E-CR2032, KECR2032, SB-T15, CR2032H, SR2032, CD2032 + others.
Voltage: 3v QUALITY
Size: 3.2mm x 20.0mm
Click on image for more options.

Equivalent replacement for batteries
CR2320, 2320, 2320S, BR2320, L26...
Voltage: 3v
Size: 2.0mm x 23.0mm

QUALITY
Click image for more options.

Equivalent replacement for batteries
CR2325, BR2325, 2325... QUALITY
Voltage: 3v
Size: 2.5mm x 23.0mm
Click on image for more options.

Equivalent replacement for batteries

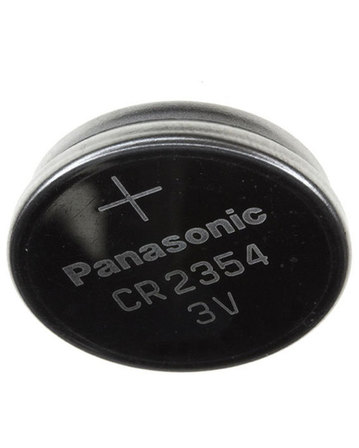

CR2354, DL2354, BR2354, KL2354, L2354, ECR2354, KCR2354, E-CR2354 + others. QUALITY
Size: 5.4mm x 23.0mm
Click on image for more options.

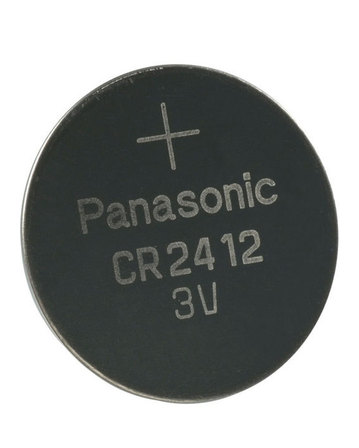

CR2412, DL2412
Voltage: 3V
Nominal Capacity: 100mAh
Size: 24mm x 1.2mm
Click on image for more options.

Equivalent replacement for batteries

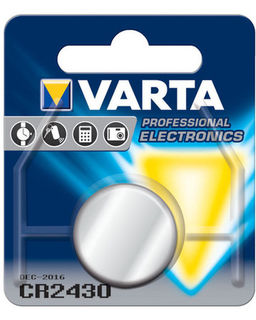

CR2430, DL2430, BR2430, KL2430, L2430, ECR2430, 5011LC, L20, KCR2430, E-CR2430, KECR2430, LF1/2W + others.
Voltage: 3v
Size: 3.0mm x 24.0mm
Click on image for more options.

Equivalent replacement for batteries
CR2450N, DL2450, ECR2450, BR2450, BR2450-1W, CR2450N, KCR2450, LM2450, 5029LC + others.
Voltage: 3v
Size: 5.0mm x 24.0mm
Click on image for more options.

Compatible Part Numbers:
2477, BR2477, BR2477N, BR24771W, BR2477N1W, CR2477N, CR2477T, DL2477, DL2477N, ECR2477, ECR2477N, KCR2477, KCR2477N, LITH32, LITH32PANA, LM2477, LM2477N, P120ND, CR2477. QUALITY
3V
Diameter or Width: 24.5mm.
Height: 7.7mm.
Click on image for more options.
