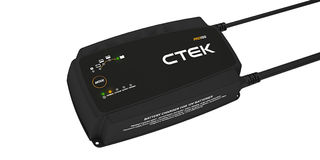

15A charger and power supply for workshops and showrooms
Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO15S has a dedicated reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode can act as a secure 12V power source if the battery needs to be disconnected from the vehicle. The PRO15S has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. Whilst the PRO15S is lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest environments. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)
Integrated safety features, so it’s safe for the battery & the vehicle.
Built-in temperature sensor to achieve maximum charge levels
Dedicated reconditioning programme to restore battery life and recondition flat batteries.
IP44 classified for outdoor use
Lightweight & highly portable
Mounting points are designed in to the casing.
Tough & robust
Ambient operating temperature -20 ˚C to +50 ˚C
Back current drain* Corresponding to less than 1 Ah/month
Battery capacity 20–350 Ah, lead-acid battery types. 20–300 Ah, LiFePO₄.
Battery chemistry Lead acid; Lithium-ion
Battery types 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
Battery voltage 12 V
Charging cable length (output) 2 m
Charging category AC charging
Degree of protection IP44
Dimensions (L x W x H) 235 x 130 x 65 mm
Gross weight (unit in box) 2.1 kg
Input 220–240 VAC, 50–60 Hz, 1.8 A
Net weight (unit with cables) 1.8 kg
Output 14.4/15.8/13.6 V, 15 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 15 A, LiFePO₄.
Ripple** Less than 4 %
Start voltage 2.0 V
Temperature compensation External charge voltage temperature compensation sensor.
*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
