12V 30A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller (Lithium Battery + Bluetooth Compatible)

12v 35 Amp Power Supply. A comprehensive system building on all the functionality of TBC-PM200, but with a remote LCD display offering advanced monitoring of battery, solar, water and electrical systems, plus a full MPPT 30A solar charge controller.
Click image for more options.

RRP:

NZ$ 2,050.95

Price:

NZ$ 1,715.00 including GST

or four interest-free payments of $428.75 with
Learn More

Product Code:

TBCPM300BT

Availability:

Out Of Stock

Information
Features
Specifications
Product Enquiry
Associated Items

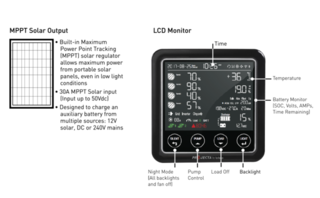

TBC-PM300’s remote LCD control features battery and charging information (Volts, AMPs, SOC, time remaining), up to 4 water tank level inputs with pump control, a load switch, night mode and silent mode for quiet operation. 14 channel fused output and WAGO terminals, plus a host of protection features and sensors ensure easy, safe operation and monitoring of your electricals.

FULL RANGE OF MANAGEMENT SYSTEMS FOR RV'S -CLICK HERE

20A Charger, 35A Power Supply

Manual Battery Switch connection for remote & local operation

PWM Solar Input

Voltage Sensitive Relay engages & disengages with engine

Wago Terminals for easy wiring

Water Level & Pump Control

WIRING UNIT DIMENSIONS
266mm (L) x 165mm (W) x 129mm (H)

ACCESSORIES & SPARES
PMSWEX-2 - 2m Ext. Cable for Panel Switch, LED and LCD Monitor
PMSWEX-4 - 4m Ext. Cable for Panel Switch, LED and LCD Monitor
PMWS200 - 200mm Water Sensor with 4m Cable
PMWEX-4 - 4m Extension Cable for Water Sensor
PMTEX-2 - 2m Extension Cable for Temperature Sensor
PMTEX-4 - 4m Extension Cable for Temperature Sensor
PMBEX-2 - 2m Extension Cable for Battery Sensor
PMBEX-4 - 4m Extension Cable for Battery Sensor

COMPONENT LIST
PM335 - 12V 20A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller
PMLCD - LCD Display to Suit PM335
PMLCDC - 5m Cable to Suit LCD Screen
PMTS - Temperature Sensor w/ 5m Cable to Suit PM Units for Amoy System
PMBS - Battery Sensor with 3m of Cable
PMAC - AC Power Cord, 1.5m

SPECIFICATIONS
12V 20A Charger
35A Power Supply
30A MPPT Solar
100A DC VSR
14 Fused Outputs
