Information
TBC-PM200’s remote display features 3 water levels, starter and service battery voltages, switch for water pump control, night mode buttons and load on/off switch. The 30A PWM solar input allows the user to rely on solar during sunny conditions or DC when it’s not. WAGO terminals make installation and changes to wiring a breeze, whilst a manual battery switch connection allows for remote or local operation.
Features
|
20A Charger, 35A Power Supply |
Manual Battery Switch connection for remote & local operation |
PWM Solar Input |
Voltage Sensitive Relay engages & disengages with engine |
Wago Terminals for easy wiring |
Water Level & Pump Control |
|

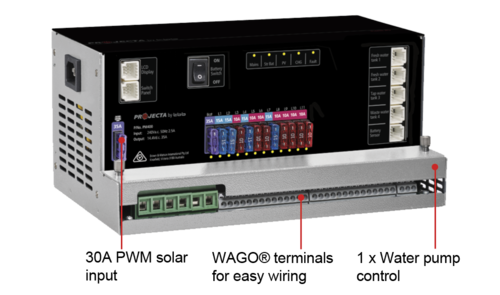

14 Channel fused output, Wago Terminals
|

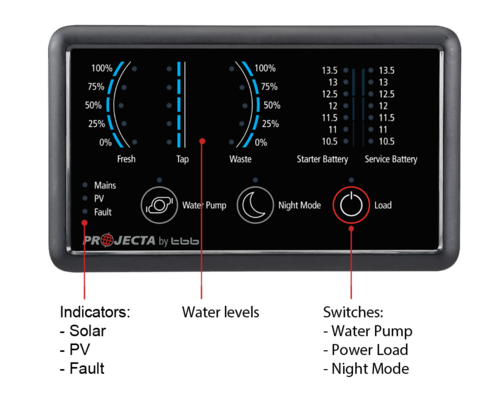

L.E.D Switch Panel
|
Specifications
WIRING UNIT DIMENSIONS
266mm long
165mm wide
129mm high
TBC-PM200 ACCESSORIES & SPARES
PMBS - Battery Sensor with 3m of Cable
PMBEX-2 - 2m Extension Cable for Battery Sensor
PMBEX-4 - 4m Extension Cable for Battery Sensor
PMSWEX-2 - 2m Ext. Cable for Panel Switch, LED and LCD Monitor
PMSWEX-4 - 4m Ext. Cable for Panel Switch, LED and LCD Monitor
PMWS200 - 200mm Water Sensor with 4m Cable
PMWEX-4 - 4m Extension Cable for Water Sensor
COMPONENT LIST
PM235 - 12V 20A Charger & 35 Amp Power Supply, 30A Solar controller
PMSWLED - LED Display to Suit PM235
PMSWLEDC - 5m Cable to Suit PMSWLED
PMBS - Battery Sensor with 3m of Cable
PMAC - AC Power Cord, 1.5m
SPECIFICATIONS
12V 20A Charger
35A Power Supply
30A PWM Solar
100A DC VSR
14 Fused Outputs
COMPREHENSIVE INSTRUCTION MANUAL INCLUDED WITH YOUR PURCHASE
