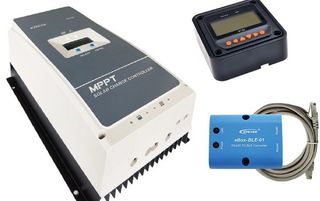

MPPT 60a SOLAR CONTROLLER COMBO PACK 12/24/36/48V, has lithium function + Bluetooth

MPPT 60a SOLAR CONTROLLER COMBO PACK 12/24/36/48V, has lithium function + Bluetooth
A genuine MPPT controller contains a maximum power point (MPP) tracker, which finds the MPP voltage of your array. Any additional voltage is converted into current.
Click image for full combo information
Price:
NZ$ 585.00 including GST
MPPT60A+MT50+BLUETOOTH
Purchase Qty:


Downloads
MPPT CONTROLLER INFO IN PDF [HERE] (MASSIVE indepth Manual supplied)

CONTROLLER REMOTE DISPLAY INFO IN PDF [HERE]

MPPT 60A CONTROLLER INFO
On 12V panels, you can expect a 10-15% improvement during bulk charging. However, the main benefit is the ability to run a higher voltage array on a lower voltage battery bank, up to 150V. This reduces the cost of wiring, connectors and circuit protection.
Improvements include
* Inbuilt display showing real-time data
* Integration with MT-50 display
* Faster, more accurate tracking (Immediate on boot up, 99.5% accuracy)
* Higher conversion efficiency (98%)
* Ability to connect a larger array. The controller has the ability to restrict the charging current, so it does not exceed 60A The benefit it more power during off off peak times.
Electronic protection: over charging, over discharging, overload, short circuit, and reverse polarity.
SPECIFICATIONS
Battery voltage: 12V/24V/36V/48V (auto detect)
Maximum PV Open-circuit Voltage (Voc): 150V Max
Rated PV Size: 750W/1500W/2250W/3000W
Maximum PV Current: 60A
Working temperature: -20 ~ +45C
Weight: 4.5 kg
Dimensions: 340 mm × 236 mm × 119 mm
Terminal 35mm2
Recommended cable 16mm2

BLUETOOTH OPTION (DONGLE SUPPLIED WITH THIS COMBO PACKAGE)
Realize wireless monitoring function of solar controller and inverter
Support mobile phone APP, plug and play, simple and convenient to set
Use high performance, ultra-low power consumption Bluetooth dedicated chip
Adopt Bluetooth 4.0 and BLE technology
Fast communication, strong anti-interference ability
No need of external power supply
Communication distance up to 10 m
Master reset adapter
For app Go to https://www.epsolarpv.com/downsoft.html
On your phone and download the app you need
Or scan the code on box will take you to website


MPPT60 REMOTE CONTROLLER (INCLUDED IN PACKAGE)
Remote Digital Meter for Tracer A, AN and BN series
·Automatic identify the controller, and display the type, model and relevant parameter data
·Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
·With six navigation function keys, the operation is direct, convenient and rapid
·Real-time energy statistics recording
·Both data and data flowing on the same lead ,no need for external power
·Real-time monitoring and acoustic alarm of failure information of the controller
More powerful function
·Diversified load control modes : manual, light ON/OFF, Light ON+ Timer, Time Control
·Battery type selection: Gel, sealed, flooded and USER type
·Real-time monitor
·Programmable parameters
·Energy display function
Connection cable length: 2m
Dimensions: 114mm x 114mm
