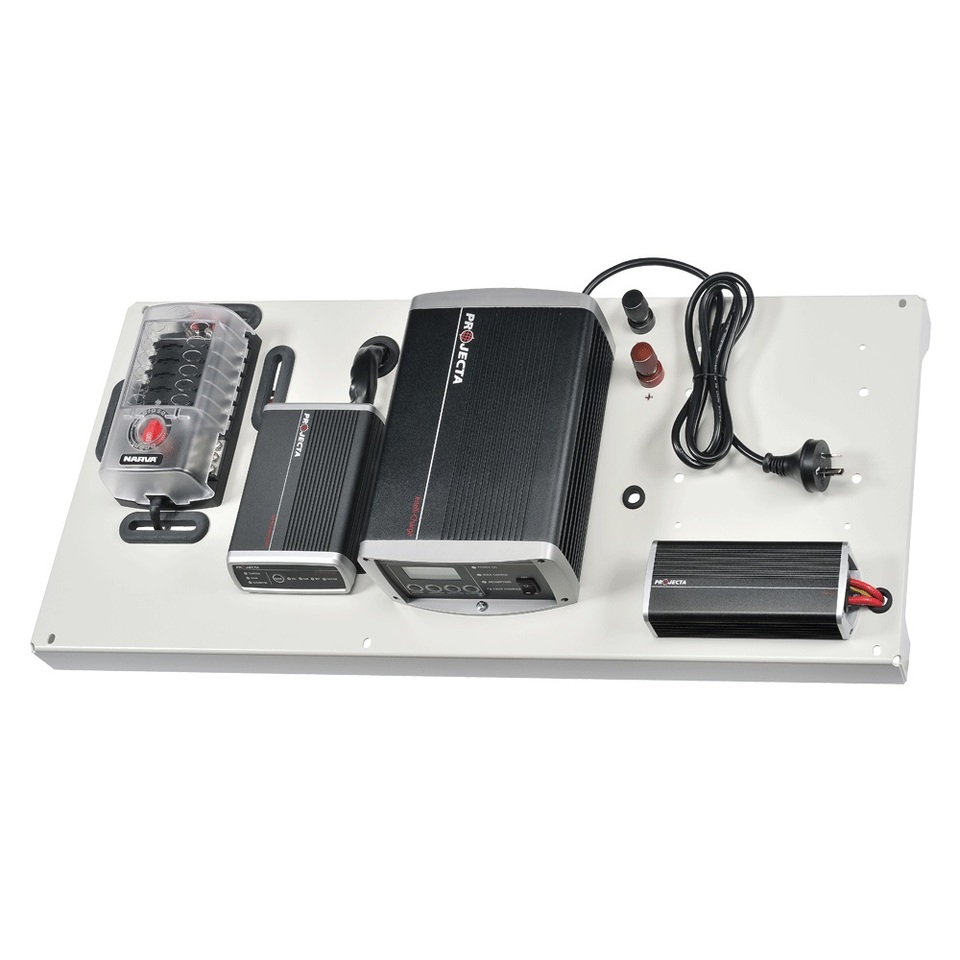

12V 35A Power Management Board

Features

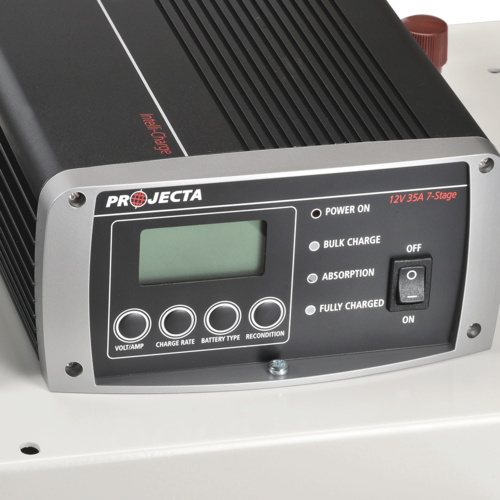

7 stage charger
A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

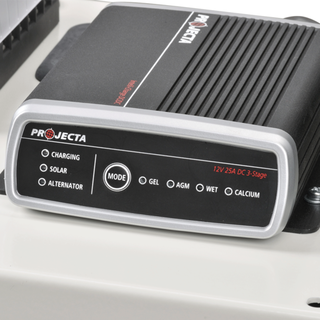

DC/solar controller
Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge

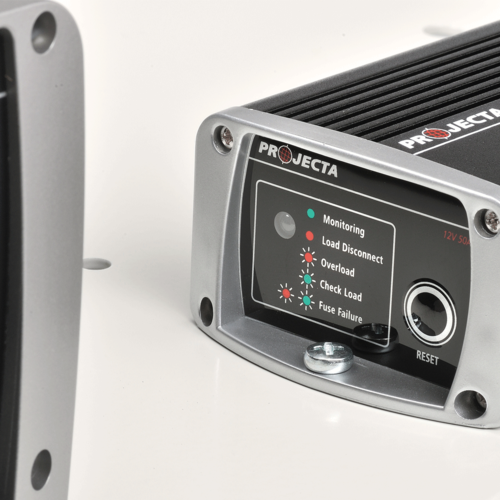

Low voltage disconnect
A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

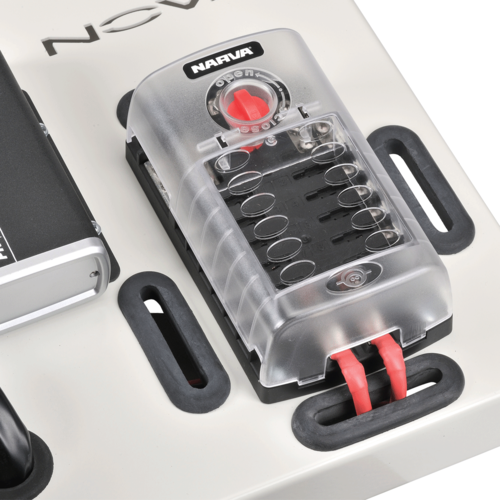

Fuse distribution box
A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

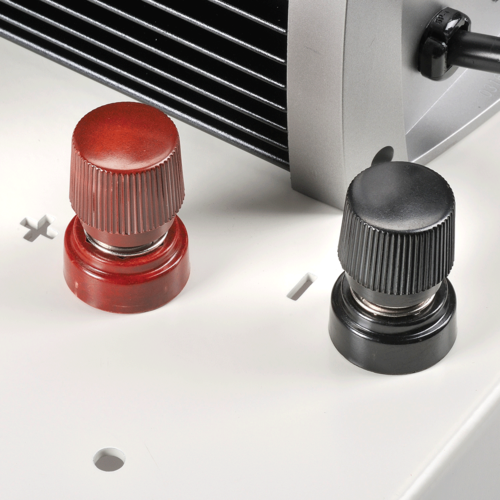

Direct battery connection
Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries

Specifications

240v charging (mains/generator)
CHARGER TYPE: 7-STAGE AUTOMATIC
INPUT: 240VAC, 50HZ, 792W
OUTPUT: 12V
OUTPUT CURRENT: 2, 8, 16, 35A
BATTERY SUPPORT: GEL, AGM, WET + CALCIUM

Solar + DC 12V Charging
CHARGE TYPE: 3-STAGE
ALTERNATOR INPUT: 9-32VDC
MAX SOLAR INPUT: 23VDC, 385W
ALTERNATOR TYPE: Smart + Conventional
BATTERY SUPPORT: GEL, AGM, WET + calcium

LVD CONTROL (Low Voltage Disconnect Feature)
INPUT VOLTAGE: 10-16V
OUTPUT CURRENT: 50A
DISCONNECT VOLTAGE SET POINTS: 10.0V, 10.5V, 11.0V, 12.0V

Fuse Block
LOAD: 30a per circuit, 120A max per block at 12v
CIRCUITS: 6-Way ATS Blade fuses
