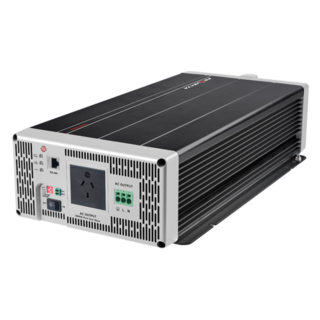

Same as the 12v version BUT for use on 24v battery systems
or four interest-free payments of $142.75
with
Learn More
THE BATTERY CELL --- Phone 0800 030 999
Information
| Efficient 24V Power Conversion The use of a 24V system allows more efficient production of power due to the reduced current. |
| Peak Power Technology Heavy duty MOSFET transistors and a high output transformer allow the inverter to power maximum loads from start up. |
| Superior Noise Free Filtering All Projecta inverters have EMC filtering and large electrolytic capacitors for smoother power delivery so your TV, radio, DVD, computers, etc, run as though they are on mains power. |
| Twin 240V Power Outlets Any combination of sockets can be used, provided the combined load does not exceed the inverter's rating. |
| Low Battery Voltage Protection To protect your battery from permanent damage caused by a deep discharge, the IM1000-24 has a low battery warning buzzer and shut off. |
| Thermostatically Controlled Cooling Fan A built in cooling fan ensures that the inverter continues to provide reliable power for longer periods when under heavy loads. |
| Internally Bonded Earth System All Projecta inverters have an internally bonded earth system. This ensures that in the event of a 240V appliance failing, the inverter will immediately shut down, preventing any chance of electrocution. |
| Mounting Brackets Allows the inverter to be easily mounted. |
Features
FEATURES
Battery cable
1100mm 16mm2 battery cable
Twin power sockets
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763
L.E.D indicators
Power and fault lights with audible alarm if problem is detected
Efficient design
Temperature controlled automatic cooling fan
Mounting flange
Convenient and robust mounting point
Specifications
|
INPUT |
24VDC, 60A Max |
||
|
NO LOAD CURRENT DRAW |
0.4A |
||
|
OUTPUT |
230/240VAC, 50Hz (Modified Sine) |
||
|
OUTPUT POWER |
1000W Continuous (2000W Peak) |
||
|
INVERTER CLASSIFICATION |
Equipotentially Bonded (EPB) |
||
|
EFFICIENCY |
85–90% |
||
|
LOW BATTERY ALARM |
21.0 Volt |
||
|
SHUTDOWN |
20.0 Volt (±0.2V) |
||
|
COOLING FAN |
Automatic temperature controlled |
||
|
THERMAL SHUTDOWN |
65°C (±5°C) |
||
|
FUSE |
6 x 10A |
||
|
IDEAL BATTERY SIZE |
40–130Ah |
||
|
MINIMUM BATTERY SIZE |
40Ah, 350CCA |
||
|
RUN TIME WITH 1000W ON 40Ah BATTERY |
15 minutes |
||
|
RUN TIME WITH 100W GLOBE ON 40Ah BATTERY |
6 hours |
||
|
WARNING ALARM |
LED & Audible alarm indicates a fault |
||
|
APPROVALS |
Electrical Safety, EMC |
||
INPUT 24VDC, 60A Max
NO LOAD CURRENT DRAW 0.4A
OUTPUT 230/240VAC, 50Hz (Modified Sine)
OUTPUT POWER 1000W Continuous (2000W Peak)
INVERTER CLASSIFICATION Equipotentially Bonded (EPB)
EFFICIENCY 85–90%
LOW BATTERY ALARM 21.0 Volt
SHUTDOWN 20.0 Volt (±0.2V)
PDF FILE MANUAL FOR DOWNLOAD HERE
