12V SMART BATTERY GAUGE

Features

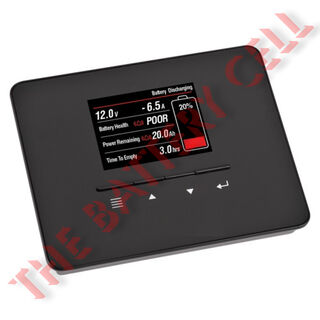

2.4" colour LCD screen
High intensity LCD screen displays: predicted state of charge, battery health, time to full charge and time to empty

Installation kit
Kit includes 500 Amp shunt and terminals for professional installation

Total user control
Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms

1.5M pre-wired harness

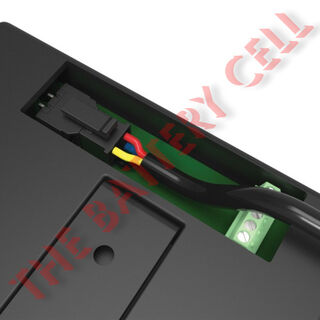

Supplied pre-wired with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option

Ease of fitment

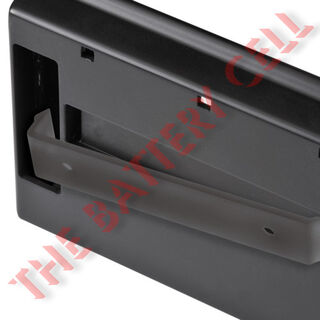

Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface

Specifications

CURRENT DRAW 12V/1.5mAdc

INPUT VOLTAGE RANGE 6.0–17.0Vdc

MAX CURRENT 320A

BATTERY CAPACITY SUPPORTED 5-320AH

DISPLAY RESOLUTION
Current: 0.1A
Voltage: 0.1V
Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED Wet/AGM/Gel/Calcium

CABLE LENGTH 1.5m

CONNECTORS
Terminal Block
Molex 4 pin snap fit

DISPLAY
TIME REMAINING (to full/to empty)
POWER REMAINING (Ah)
CHARGING/DISCHARGING STATUS
BATTERY STATE OF HEALTH (Ideal, Good, Fair, Poor)

PROTECTION
MINIMUM VOLTAGE 6V

INPUT OVER VOLTAGE PROTECTION 17V

REVERSE POLARITY PROTECTED

MANUAL IN PDF HERE
