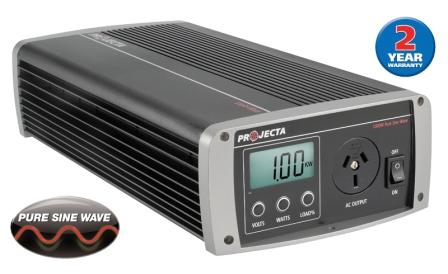

12V 1000W Pure Sine Wave Inverter Intelli-wave

12V 1000W Pure Sine Wave Inverter Intelli-wave
12V 1000W Pure Sine Wave Inverter. PREMIUM. With a peak power output of an astonishing 2000W, This Inverter is the ideal inverter for powering all your electrical needs that require ultra clean power.
RRP:
NZ$ 1,298.00
Price:
NZ$ 1,036.20 including GST
IP1000
Purchase Qty:
Would you like to add?:


Why Intelli-Wave?
Projecta Intelli-Wave inverters deliver class-leading performance, power efficiency and reliability making them the choice of professionals. Engineered to produce ultra clean power, Intelli-Wave inverters feature exceptional peak power performance (200% capacity for 3 secs, 140% capacity for 3 mins) allowing them to effortlessly run demanding appliances such as fridges and power tools. All Projecta inverters are fully isolated and designed in accordance with Australian standards for safety and peace of mind.
Pure Sine Wave Output
Watch television without static, listen to an AM radio, play your favourite game on an XBoxTM, PlaystationTM or WiiTM, run a fluorescent light, or power any other sensitive electrical appliance.
Fully Isolated Design
Safety is paramount around 240V and in particular with inverters which is why Projecta fully electrically isolates the DC (and therefore battery posts, vehicle chassis, etc) from the 240V AC circuit.
Designed to AS4763
Designed in accordance with Australian Standard AS4763 (Int): 2006 – Safety of Portable Inverters.
Dust Proof
Constructed from extruded aluminium, Intelli-Wave inverters are dust proof and shock resistant. The circuit boards have been conformal coated to protect against moisture and other elements so they are suitable for use in a range of locations.
2 Year Warranty
Australian designed and engineered, quality is guaranteed and all battery chargers include a 2 year comprehensive warranty.

Ideal for permanent installation this sophisticated inverter is perfectly suited to caravans and trade requirements.

INPUT 12V DC, 100A Max
RUN TIME WITH 1000W ON 75AH BATTERY 15 min
NO LOAD CURRENT DRAW 1.2A
RUN TIME WITH 100W GLOBE ON 75AH BATTERY 6 hours
OUTPUT 240V AC 50Hz (Pure Sine Wave)
APPROVALS Electrical Safety, EMC
L.E.D LIGHT INDICATION
OUTPUT POWER 1000W Continuous (2000W Peak)

IDEAL BATTERY SIZE 75-250Ah
MINIMUM BATTERY SIZE 75Ah, 550CCA
INPUT 12V DC, 100A Max
RUN TIME WITH 1000W ON 75AH BATTERY 15 min
NO LOAD CURRENT DRAW 1.2A
RUN TIME WITH 100W GLOBE ON 75AH BATTERY 6 hours
OUTPUT 240V AC 50Hz (Pure Sine Wave)
APPROVALS Electrical Safety, EMC
L.E.D LIGHT INDICATION
OUTPUT POWER 1000W Continuous (2000W Peak)
GREEN LIGHT Power on
INVERTER CLASSIFICATION Equipotentially Bonded (EPB)
GREEN LIGHT (FLASHING) High battery voltage shutdown
EFFICIENCY 85-90% GREEN/RED LIGHT (FLASHING)
Low battery voltage shutdown
LOW BATTERY ALARM/SHUTDOWN Alarm 10.25V, Shutdown 9.75V (±0.2V)
RED LIGHT (FLASHING) Overload shutdown
COOLING FAN Automatically temperature controlled
RED LIGHT Over temp shutdown & output short circuit
THERMAL SHUTDOWN 65°C (±5°C)
FUSE 220A (4 x 40A, 2 x 30A)

DATA SHEET FILE
